FF manifolds, with therm. valves and lockshield

  • FF manifolds, with therm. valves and lockshield
  • Scheda tecnica - FF manifolds, with therm. valves and lockshield
  1. FF manifolds, with therm. valves and lockshield
  2. Scheda tecnica - FF manifolds, with therm. valves and lockshield
Art. A312÷A3202

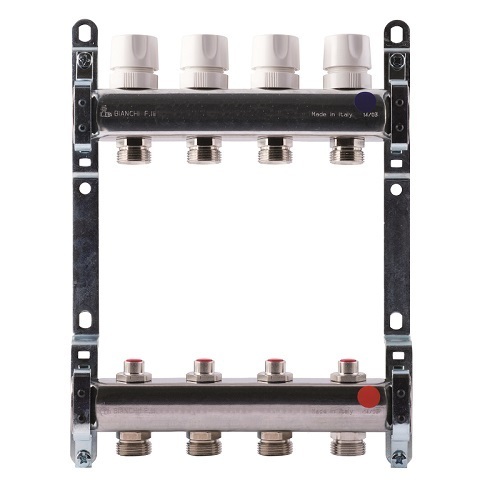

FF stainless steel AISI 304L manifolds with 3/4" male Euroconus outlets, with thermostatic valves and lockshield valves. Manifold's brackets Art. 271.

Working temperature: 5-80°C
Max working pressure: 10 bar

Print datasheet

Items

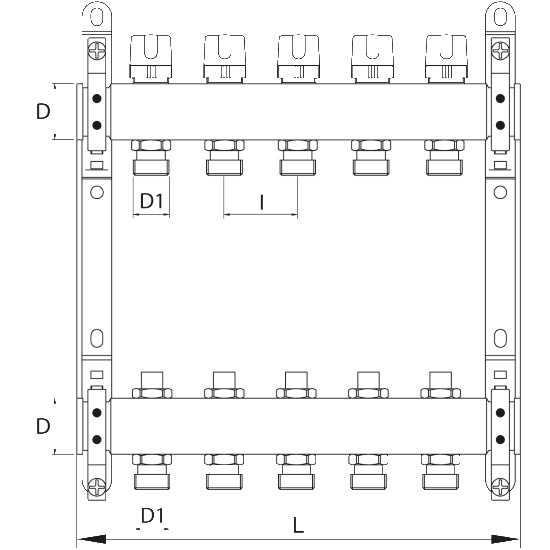

Code Size (D) Smooth Handle D1 I L Pack
2 ways
A312060500 1" Plastic 3/4" 50 143 1
3 ways
A313060500 1" Plastic 3/4" 50 193 1
4 ways
A314060500 1" Plastic 3/4" 50 243 1
5 ways
A315060500 1" Plastic 3/4" 50 293 1
6 ways
A316060500 1" Plastic 3/4" 50 343 1
7 ways
A317060500 1" Plastic 3/4" 50 393 1
8 ways
A318060500 1" Plastic 3/4" 50 443 1
9 ways
A319060500 1" Plastic 3/4" 50 493 1
10 ways
A320060500 1" Plastic 3/4" 50 543 1
11 ways
A320160500 1" Plastic 3/4" 50 593 1
12 ways
A320260500 1" Plastic 3/4" 50 643 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets; accessories will be supplied separately, inside the same box
