Art. A332AA÷A3402AA

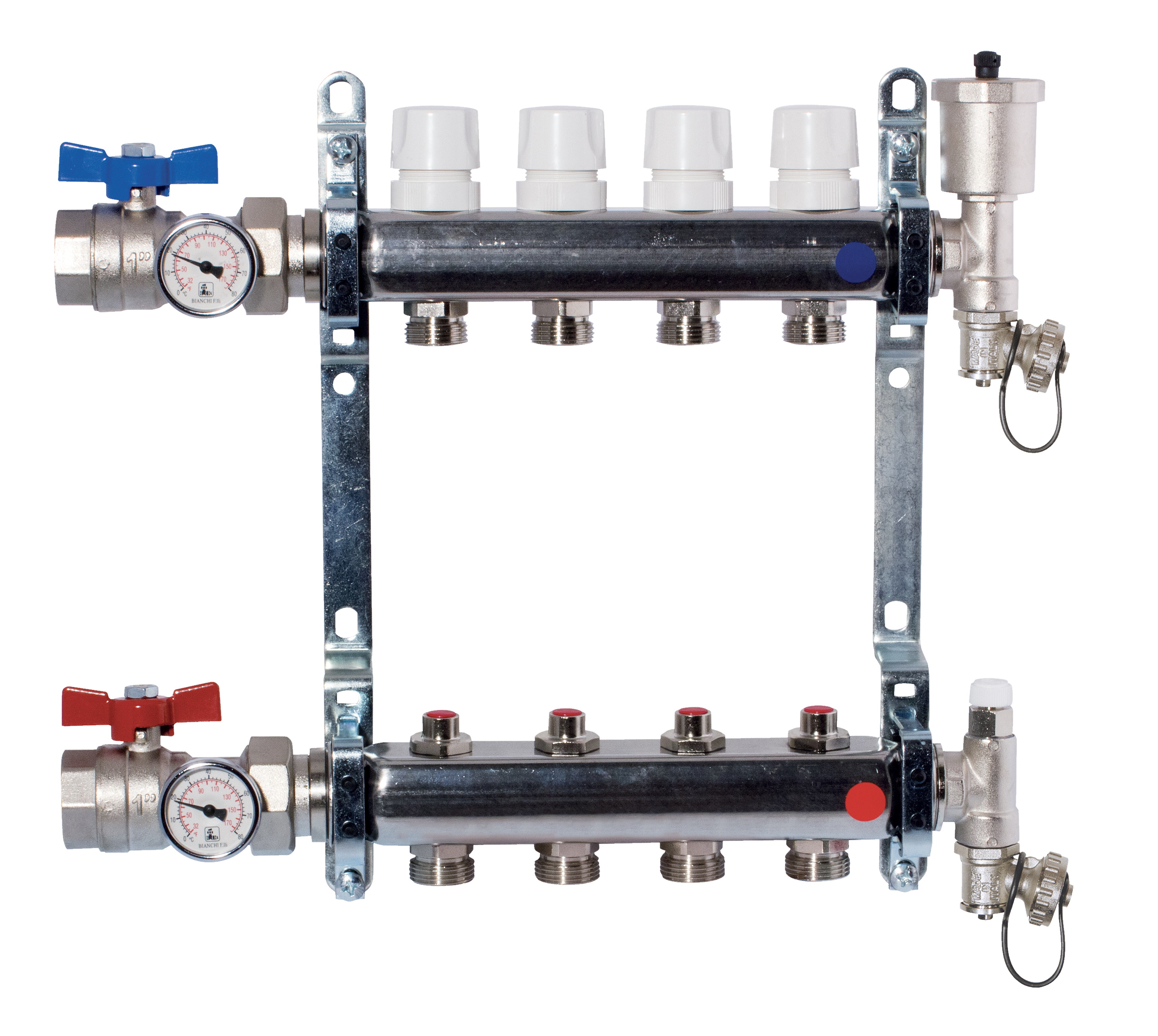

FF stainless steel AISI 304L manifolds with 3/4" male Euroconus outlets, with thermostatic screws and lockshield valves.
Ball valves thermometer included Art. 422M, manifold's brackets ART. 271 and terminal parts for manifolds ART. 2980N and 2990N

Working temperature: 5-80°C
Max working pressure: 10 bar

Print datasheet

Items

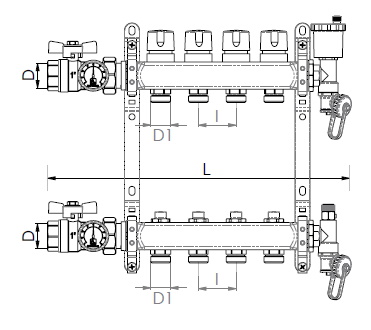

Code Size (D) Smooth Handle D1 I L Pack
2 ways
A332A6050A 1" Plastic 3/4" 50 291 1
3 ways
A333A6050A 1" Plastic 3/4" 50 341 1
4 ways
A334A6050A 1" Plastic 3/4" 50 391 1
5 ways
A335A6050A 1" Plastic 3/4" 50 441 1
6 ways
A336A6050A 1" Plastic 3/4" 50 491 1
7 ways
A337A6050A 1" Plastic 3/4" 50 541 1
8 ways
A338A6050A 1" Plastic 3/4" 50 591 1
9 ways
A339A6050A 1" Plastic 3/4" 50 641 1
10 ways
A340A6050A 1" Plastic 3/4" 50 691 1
11 ways
A340A6150A 1" Plastic 3/4" 50 741 1
12 ways
A340A6250A 1" Plastic 3/4" 50 791 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets; accessories will be supplied separately, inside the same box
