Art. A332÷A3402

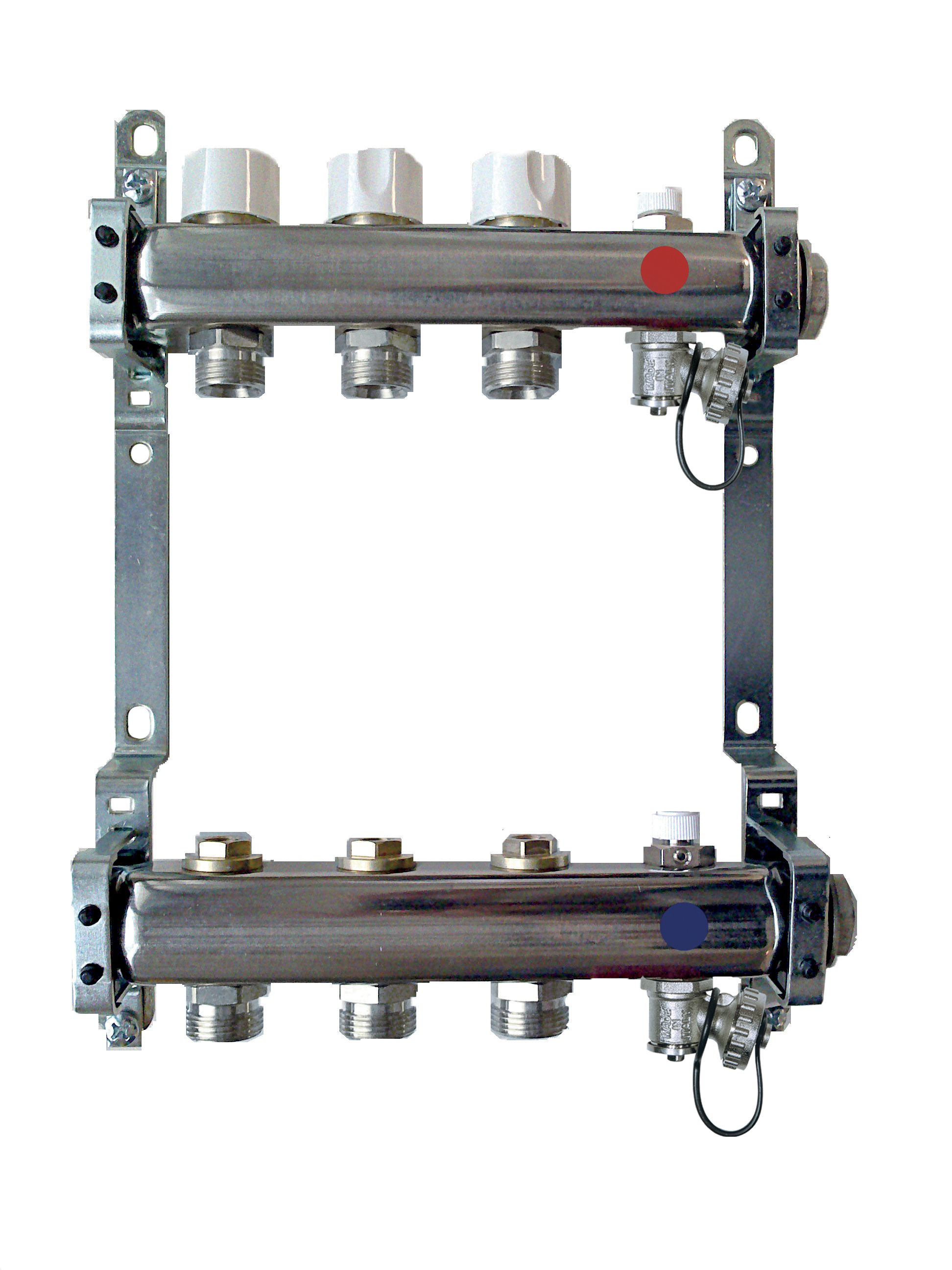

FF stainless steel AISI 304L manifolds with 3/4" male Euroconus outlets, with thermostatic screws and lockshield valves. Air discharge valve ART. 418CR, drain ball valve ART. 476CS and manifold's brackets Art. 271.

Working temperature: 5-80°C
Max working pressure: 10 bar

Print datasheet

Items

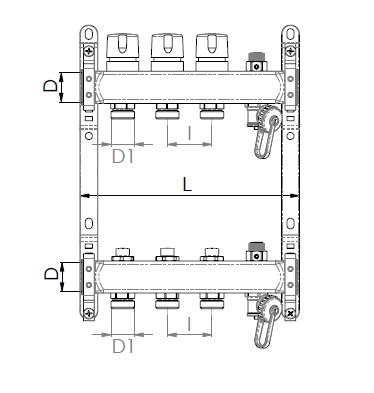

Code Size (D) Smooth Handle D1 I L Pack
2 ways
A332060500 1" Plastic 3/4" 50 143 1
3 ways
A333060500 1" Plastic 3/4" 50 193 1
4 ways
A334060500 1" Plastic 3/4" 50 243 1
5 ways
A335060500 1" Plastic 3/4" 50 293 1
6 ways
A336060500 1" Plastic 3/4" 50 343 1
7 ways
A337060500 1" Plastic 3/4" 50 393 1
8 ways
A338060500 1" Plastic 3/4" 50 443 1
9 ways
A339060500 1" Plastic 3/4" 50 493 1
10 ways
A340060500 1" Plastic 3/4" 50 543 1
11 ways
A340160500 1" Plastic 3/4" 50 593 1
12 ways
A340260500 1" Plastic 3/4" 50 643 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets; accessories will be supplied separately, inside the same box
