Art. A332A÷A3402A

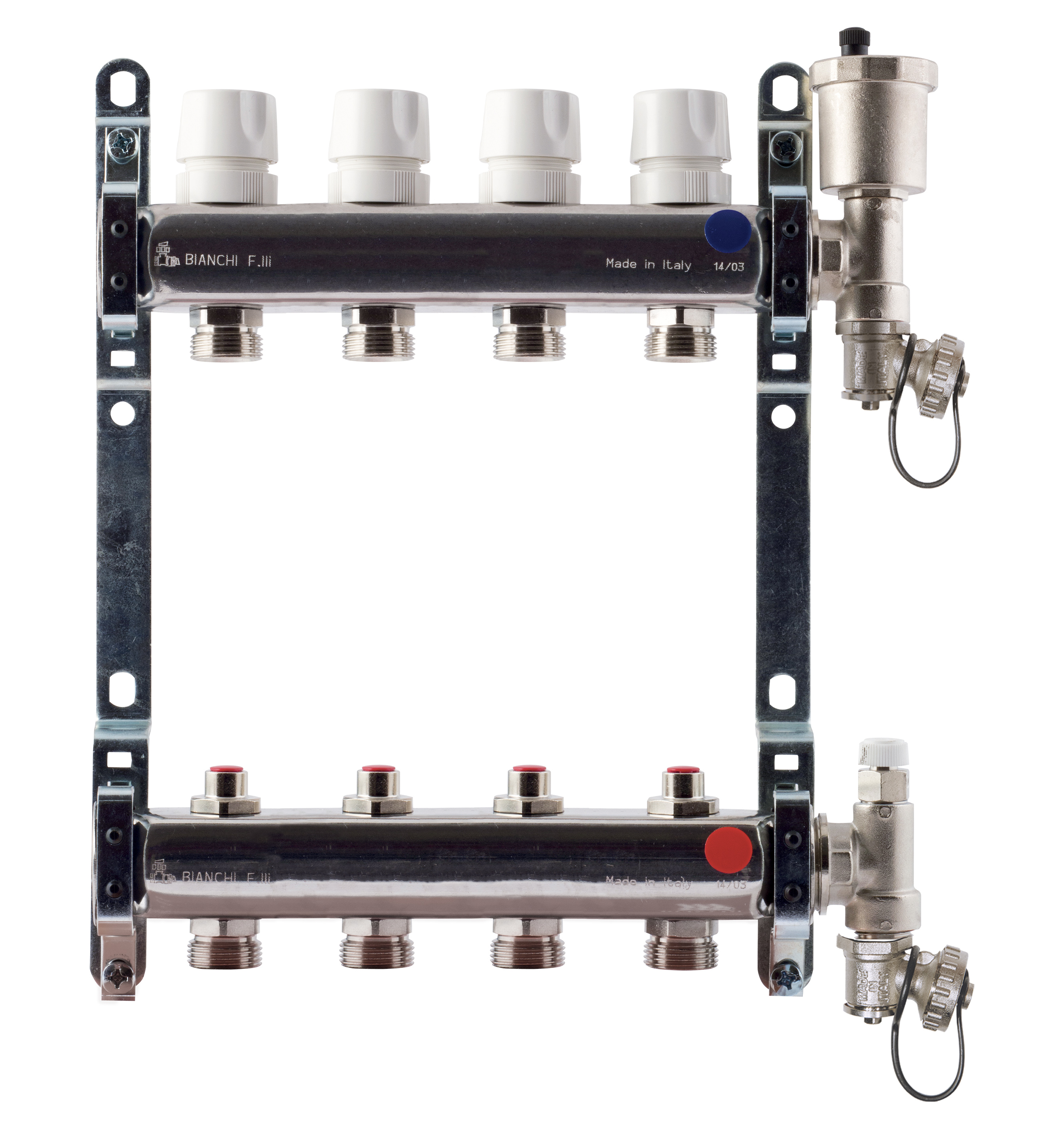

FF stainless steel AISI 304L manifolds with 3/4" male Euroconus outlets, with thermostatic screws and lockshield valves. Manifold's brackets Art. 271 and terminal parts for manifolds Art. 2980N and 2990N.
Working temperature: 5-80°C
Max working pressure: 10 bar
Print datasheet
Working temperature: 5-80°C
Max working pressure: 10 bar
Items

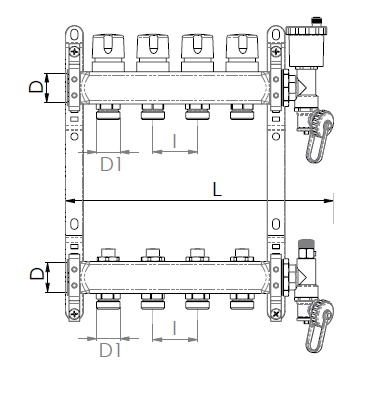

| Code | Size (D) | Smooth | Handle | D1 | I | L | Pack | ||||
| 2 ways | |||||||||||
| A33206050A | 1" | Plastic | 3/4" | 50 | 195 | 1 | |||||
| 3 ways | |||||||||||
| A33306050A | 1" | Plastic | 3/4" | 50 | 245 | 1 | |||||
| 4 ways | |||||||||||
| A33406050A | 1" | Plastic | 3/4" | 50 | 295 | 1 | |||||
| 5 ways | |||||||||||
| A33506050A | 1" | Plastic | 3/4" | 50 | 345 | 1 | |||||
| 6 ways | |||||||||||
| A33606050A | 1" | Plastic | 3/4" | 50 | 395 | 1 | |||||
| 7 ways | |||||||||||
| A33706050A | 1" | Plastic | 3/4" | 50 | 445 | 1 | |||||
| 8 ways | |||||||||||
| A33806050A | 1" | Plastic | 3/4" | 50 | 495 | 1 | |||||
| 9 ways | |||||||||||
| A33906050A | 1" | Plastic | 3/4" | 50 | 545 | 1 | |||||
| 10 ways | |||||||||||
| A34006050A | 1" | Plastic | 3/4" | 50 | 595 | 1 | |||||
| 11 ways | |||||||||||
| A34016050A | 1" | Plastic | 3/4" | 50 | 645 | 1 | |||||
| 12 ways | |||||||||||
| A34026050A | 1" | Plastic | 3/4" | 50 | 695 | 1 | |||||
Smooth
- Yellow
- Chrome
- Nickel
- White
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets; accessories will be supplied separately, inside the same box
