Art. A342A÷A3502A

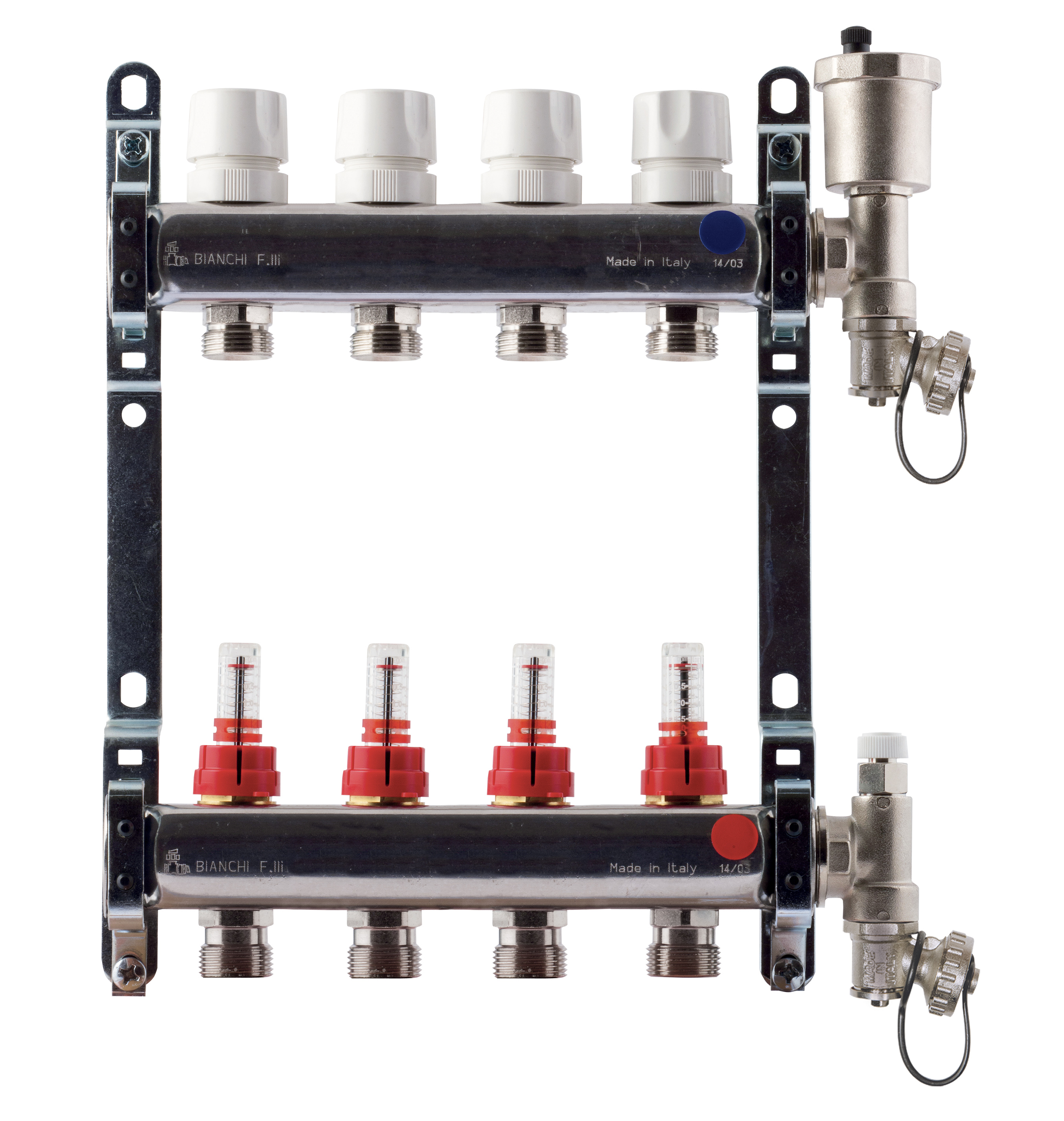

FF stainless steel AISI 304L manifolds with 3/4" male Euroconus outlets, with thermostatic screws and flow meters. Manifold's brackets Art. 271 and terminal parts for manifolds ART. 2980N and 2990N.

Working temperature: 5-70°C
Max working pressure: 6 bar
Flowmeter scale: 0-8 l/min

Print datasheet

Items

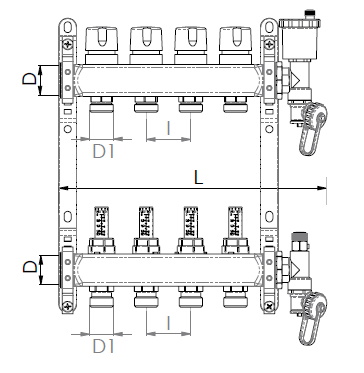

Code Size (D) Smooth Handle D1 I L Pack
2 ways
A34206050A 1" Plastic 3/4" 50 195 1
3 ways
A34306050A 1" Plastic 3/4" 50 245 1
4 ways
A34406050A 1" Plastic 3/4" 50 295 1
5 ways
A34506050A 1" Plastic 3/4" 50 345 1
6 ways
A34606050A 1" Plastic 3/4" 50 395 1
7 ways
A34706050A 1" Plastic 3/4" 50 445 1
8 ways
A34806050A 1" Plastic 3/4" 50 495 1
9 ways
A34906050A 1" Plastic 3/4" 50 545 1
10 ways
A35006050A 1" Plastic 3/4" 50 595 1
11 ways
A35016050A 1" Plastic 3/4" 50 645 1
12 ways
A35026050A 1" Plastic 3/4" 50 695 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets; accessories will be supplied separately, inside the same box
