FF manifold with 3/4" euroconus outlets and flowmeters

  • FF manifold with 3/4 euroconus outlets and flowmeters
  • Scheda tecnica - FF manifold with 3/4 euroconus outlets and flowmeters
  1. FF manifold with 3/4 euroconus outlets and flowmeters
  2. Scheda tecnica - FF manifold with 3/4 euroconus outlets and flowmeters
Art. 332MA÷3402MA

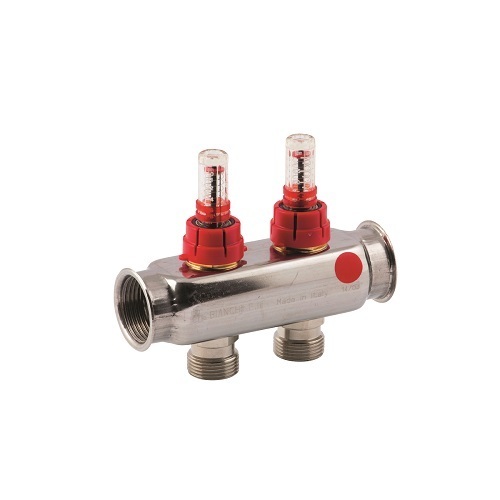

FF stainless steel AISI 304L manifold with 3/4" M Euroconus outlets and flow meters

Working temperature: 5-70°C
Max working pressure: 6 bar
Flowmeter scale: 0-8 l/min

Print datasheet

Items

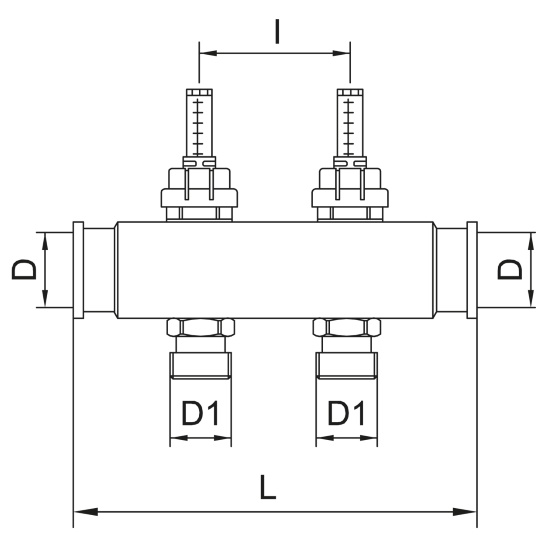

Code Size (D) Smooth D1 I L Pack
2 ways
332MA60500 1" 3/4" 50 143 1
3 ways
333MA60500 1" 3/4" 50 193 1
4 ways
334MA60500 1" 3/4" 50 243 1
5 ways
335MA60500 1" 3/4" 50 293 1
6 ways
336MA60500 1" 3/4" 50 343 1
7 ways
337MA60500 1" 3/4" 50 393 1
8 ways
338MA60500 1" 3/4" 50 443 1
9 ways
339MA60500 1" 3/4" 50 493 1
10 ways
340MA60500 1" 3/4" 50 543 1
11 ways
3401M6050A 1" 3/4" 50 593 1
12 ways
3402M6050A 1" 3/4" 50 643 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets; accessories will be supplied separately, inside the same box
