FF heavy full bore gas ball valve with butterfly handle

  • FF heavy full bore gas ball valve with butterfly handle
  • Datasheet - FF heavy full bore gas ball valve with butterfly handle
  1. FF heavy full bore gas ball valve with butterfly handle
  2. Datasheet - FF heavy full bore gas ball valve with butterfly handle
Legend

CW510LCW510L - low lead

CW602NCW602N - DZR

solarsolar

Art. 435-2

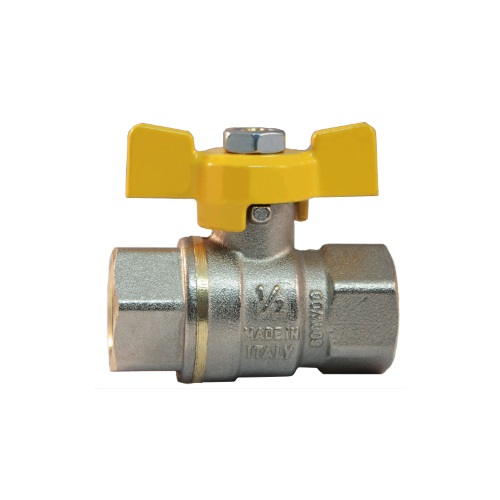

FF heavy full bore gas ball valve with butterfly handle

Print datasheet

Here following some files to download:

Items

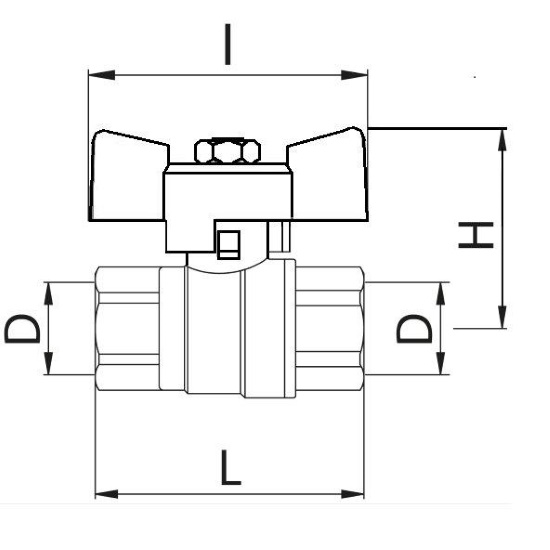

Code Size (D) Smooth Pack H L M
According to norm UNI EN 331
435200020G 1/4" 12 35 46.0 43.0
435200030G 3/8" 12 35 47.0 43.0
435200043G 1/2" 12 42 61.0 54.0
435200053G 3/4" 8 45 68.0 54.0
435200063G 1" 6 51 81.0 64.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Flow: Totale / Full
Working temperature: -20 - +60°C
Max working pressure: MOP5
Packing nut
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
