Art. 436

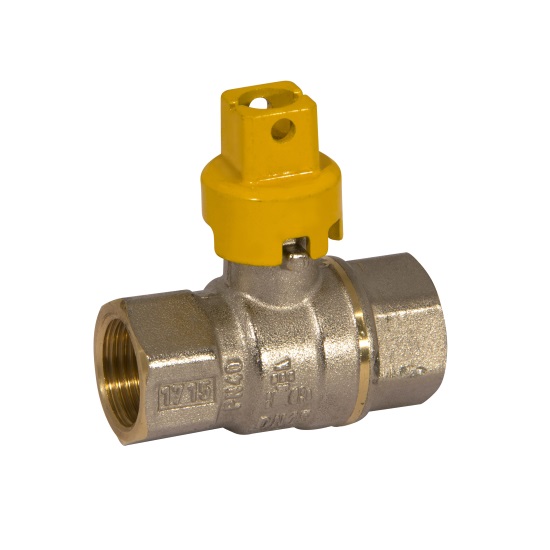

FF full bore ball valve with square lock shield handle

Print datasheet

Items

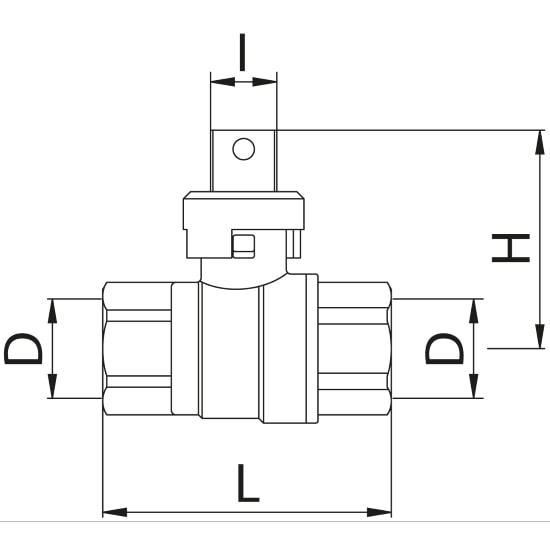

Code Size (D) Smooth Handle H I L Pack
436000040G 1/2" Aluminum 42 15 54 12
436000050G 3/4" Aluminum 47 15 62 8
436000060G 1" Aluminum 52 15 74 6
436000073G 1 1/4" Aluminum 62 17 94 4
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Full
Working temperature: -20 -+60°C
Max working pressure: MOP5
Body in forged brass
Threads: ISO 228
