FF ball valve PN25 with drain and iron lever handle

  • FF ball valve PN25 with drain and iron lever handle
  • Scheda tecnica - FF ball valve PN25 with drain and iron lever handle
  1. FF ball valve PN25 with drain and iron lever handle
  2. Scheda tecnica - FF ball valve PN25 with drain and iron lever handle
Art. 433

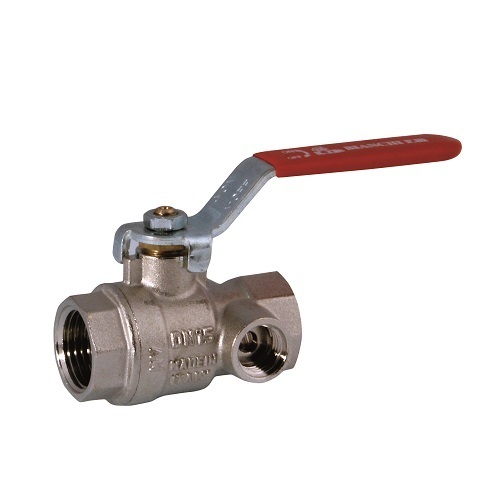

FF ball valve PN25 with drain and iron lever handle

Print datasheet

Items

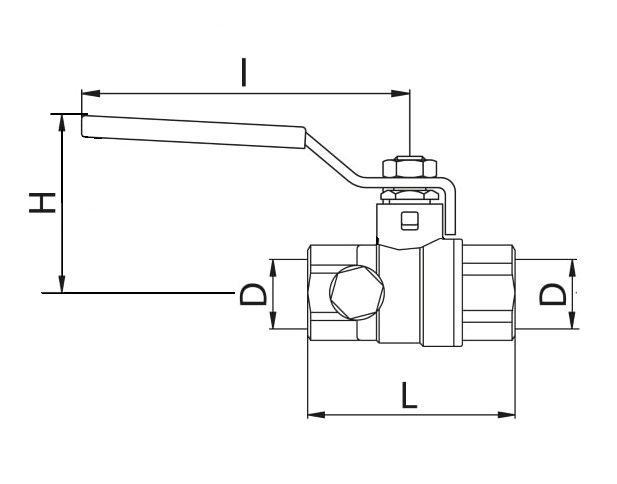

Code Size (D) Smooth Handle D1 H I L Pack
433000050A 3/4" Iron 0 0 0 12
433000040A 1/2" Iron 1/4" 49 84 58 12
433000060A 1" Iron 1/4" 60 107 73 6
433000070A 1 1/4" Iron 1/4" 75 138 86 4
433000080A 1 1/2" Iron 1/4" 81 138 93 4
433000090A 2" Iron 1/4" 96 155 112 2
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0-110°C
Body in forged brass
Threads: ISO 228
