Art. 425B

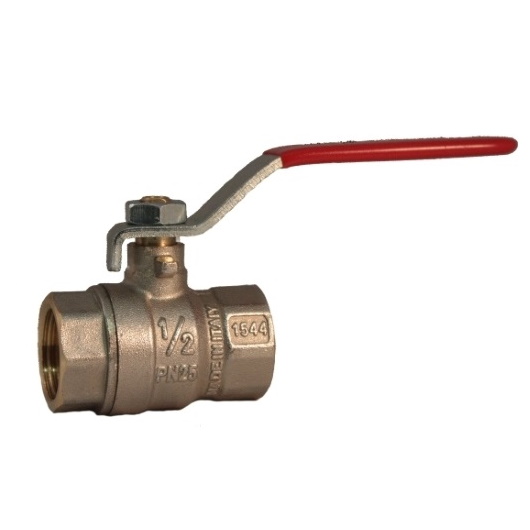

FF ball valve PN 25 with lever handle

Print datasheet

Items

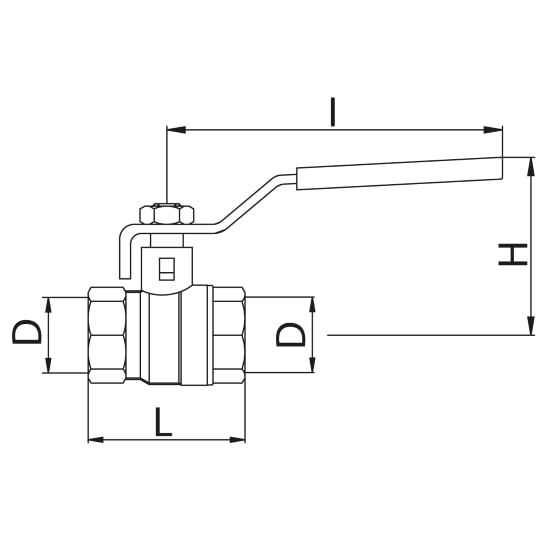

Code Size (D) Smooth Handle H I L Pack
425B00040A 1/2" Iron 52 93 50 12
425B00050A 3/4" Iron 57 93 56 10
425B00060A 1" Iron 62 112 67 6
425B00070A 1 1/4" Iron 66 112 84 6
425B00080A 1 1/2" Iron 77 143 92 4
425B00090A 2" Iron 81 143 106 4
425B00100A 2 1/2" Iron 110 270 131 1
425B00110A 3" Iron 120 270 150 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: 0-110°C
Max working pressure: 25 bar
Body in forged brass
Anti blowing stem
Threads: ISO 228
Valves 425B -424B and 425A -424A in sizes 1 1/4" -1 1/ 2" -2" are the same articles.

Made in accordance with the safety requirements laid down by European Directive 2014/68/EU (PED).
