DZR brass manifold with 3 male outlets Euroconus

  • DZR brass manifold with 3 male outlets Euroconus
  • Scheda tecnica - DZR brass manifold with 3 male outlets Euroconus
  1. DZR brass manifold with 3 male outlets Euroconus
  2. Scheda tecnica - DZR brass manifold with 3 male outlets Euroconus
CW602N_DZR
CW602N_DZR
Art. 203E

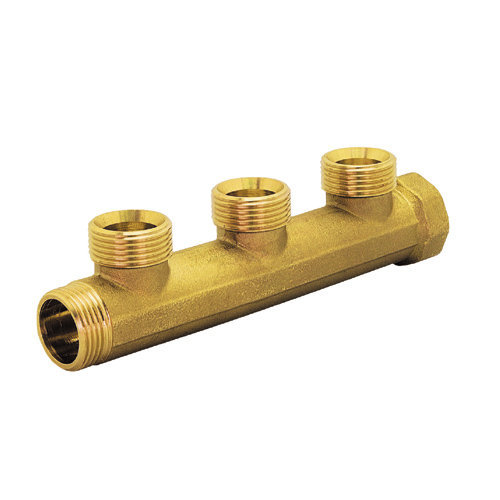

DZR brass manifold with 3 male outlets Euroconus

Print datasheet

Items

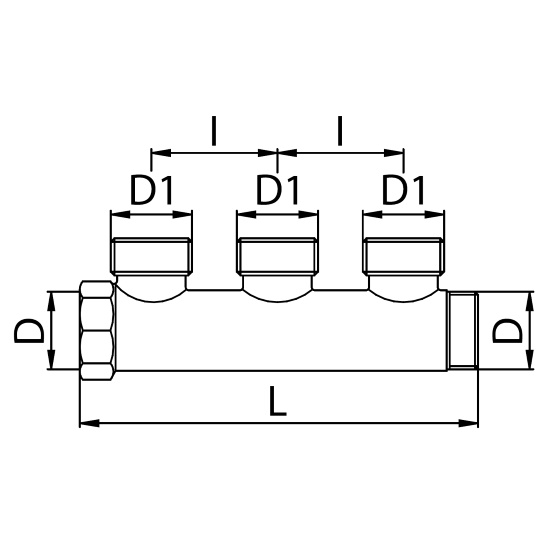

Code Size (D) Smooth D1 I L Pack
Inner diameter: 18mm
203E05050A 3/4" 3/4" 50 158 8
203EC5050A 3/4" 3/4" 50 158 8
203E06050A 1" 3/4" 50 159 6
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 110°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer pipes
