Brass bar manifold with 3/4" male outlets, type Euroconus

  • Brass bar manifold with 3/4 male outlets, type Euroconus
  • Scheda tecnica - Brass bar manifold with 3/4 male outlets, type Euroconus
  1. Brass bar manifold with 3/4 male outlets, type Euroconus
  2. Scheda tecnica - Brass bar manifold with 3/4 male outlets, type Euroconus
Art. 242E÷250E

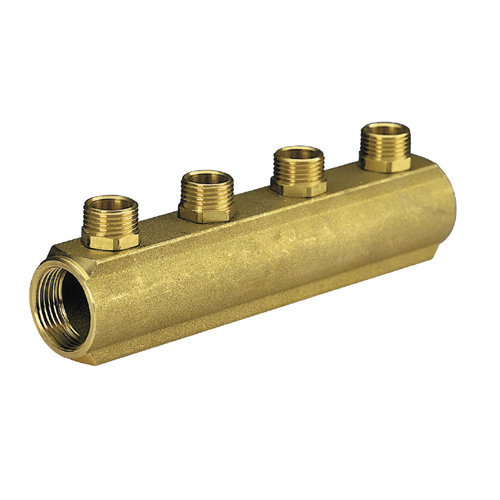

Brass bar manifold with 3/4" male outlets, type Euroconus, interaxis 50 mm

Print datasheet

Items

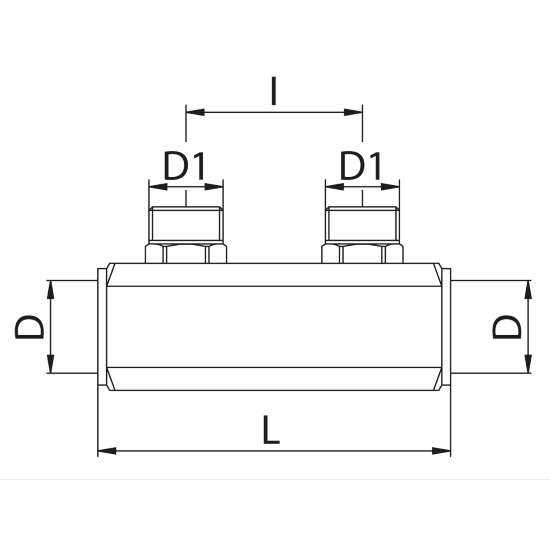

Code Size (D) Smooth D1 I L Pack
2 ways
242E050500 3/4" 3/4" 50 102 6
242E060500 1" 3/4" 50 102 6
3 ways
243E050500 3/4" 3/4" 50 152 4
243E060500 1" 3/4" 50 152 4
4 ways
244E050500 3/4" 3/4" 50 202 4
244E060500 1" 3/4" 50 202 4
5 ways
245E050500 3/4" 3/4" 50 252 3
245E060500 1" 3/4" 50 252 3
6 ways
246E050500 3/4" 3/4" 50 302 4
246E060500 1" 3/4" 50 302 4
7 ways
247E050500 3/4" 3/4" 50 352 2
247E060500 1" 3/4" 50 352 2
8 ways
248E050500 3/4" 3/4" 50 402 2
248E060500 1" 3/4" 50 402 2
9 ways
249E060500 1" 3/4" 50 452 1
10ways
250E060500 1" 3/4" 50 502 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 110°C
Max working pressure: 10 bar
Body in extruded brass bar
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer pipes
