Brass bar manifold with 1/2 outlets and 3/8" drain hole

  • Brass bar manifold with 1/2 outlets and 3/8 drain hole
  • Scheda tecnica - Brass bar manifold with 1/2 outlets and 3/8 drain hole
  1. Brass bar manifold with 1/2 outlets and 3/8 drain hole
  2. Scheda tecnica - Brass bar manifold with 1/2 outlets and 3/8 drain hole
Art. 252A÷262A

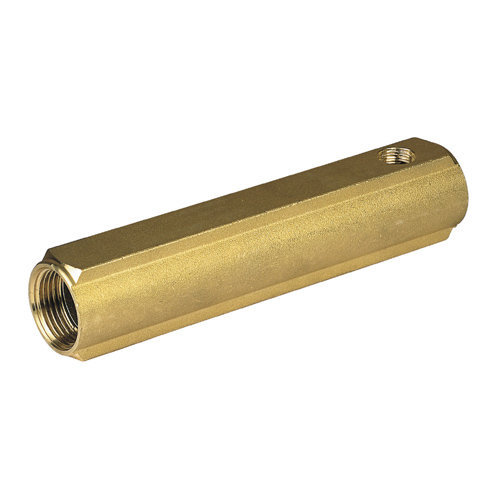

Brass bar manifold with 1/2 female outlets, interaxis 50mm, with drain hole of 3/8"

Print datasheet

Items

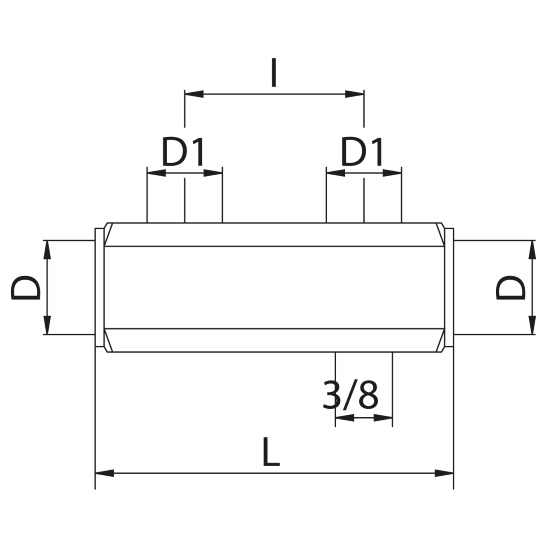

Code Size (D) Smooth D1 I L Pack
2 ways
252A060400 1" 1/2" 50 102 8
3 ways
253A060400 1" 1/2" 50 152 6
4 ways
254A060400 1" 1/2" 50 202 6
5 ways
255A060400 1" 1/2" 50 252 4
6 ways
256A060400 1" 1/2" 50 302 4
7 ways
257A060400 1" 1/2" 50 352 4
8 ways
258A060400 1" 1/2" 50 402 1
9 ways
259A060400 1" 1/2" 50 452 1
10 ways
260A060400 1" 1/2" 50 502 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 110°C
Max working pressure: 10 bar
Body in extruded brass bar
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer pipes
