Art. 252÷262

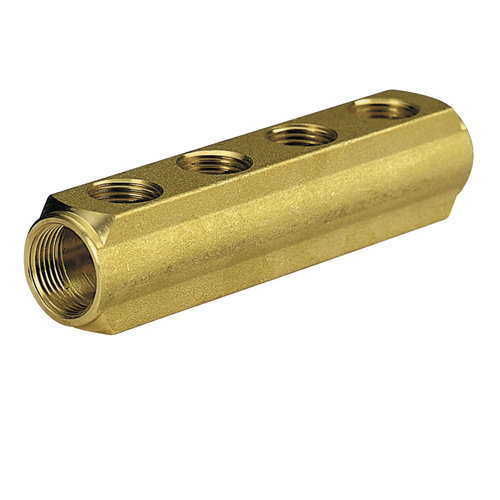

Brass bar manifold with 1/2 female outlets, interaxis 50mm

Print datasheet

Items

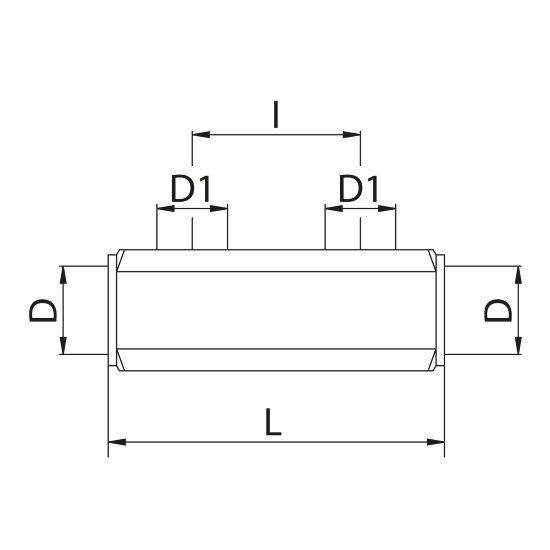

Code Size (D) Smooth D1 I L Pack
2 ways
2520050400 3/4" 1/2" 50 102 8
2520060400 1" 1/2" 50 102 8
2520070400 1 1/4" 1/2" 50 102 5
3 ways
2530050400 3/4" 1/2" 50 152 6
2530060400 1" 1/2" 50 152 6
2530070400 1 1/4" 1/2" 50 152 4
4 ways
2540050400 3/4" 1/2" 50 202 6
2540060400 1" 1/2" 50 202 6
2540070400 1 1/4" 1/2" 50 202 4
5 ways
2550050400 3/4" 1/2" 50 252 6
2550060400 1" 1/2" 50 252 4
2550070400 1 1/4" 1/2" 50 252 2
6 ways
2560050400 3/4" 1/2" 50 302 4
2560060400 1" 1/2" 50 302 4
2560070400 1 1/4" 1/2" 50 302 3
7 ways
2570050400 3/4" 1/2" 50 352 4
2570060400 1" 1/2" 50 352 4
2570070400 1 1/4" 1/2" 50 352 2
8 ways
2580050400 3/4" 1/2" 50 402 1
2580060400 1" 1/2" 50 402 1
2580070400 1 1/4" 1/2" 50 402 1
9 ways
2590050400 3/4" 1/2" 50 452 1
2590060400 1" 1/2" 50 452 1
2590070400 1 1/4" 1/2" 50 452 1
10 ways
2600050400 3/4" 1/2" 50 502 1
2600060400 1" 1/2" 50 502 1
2600070400 1 1/4" 1/2" 50 502 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 110°C
Max working pressure: 10 bar
Body in extruded brass bar
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer pipes
