Ball valve with female connection and sliding nut

  • Ball valve with female connection and sliding nut
  • Scheda tecnica - Ball valve with female connection and sliding nut
  1. Ball valve with female connection and sliding nut
  2. Scheda tecnica - Ball valve with female connection and sliding nut
Art. 528

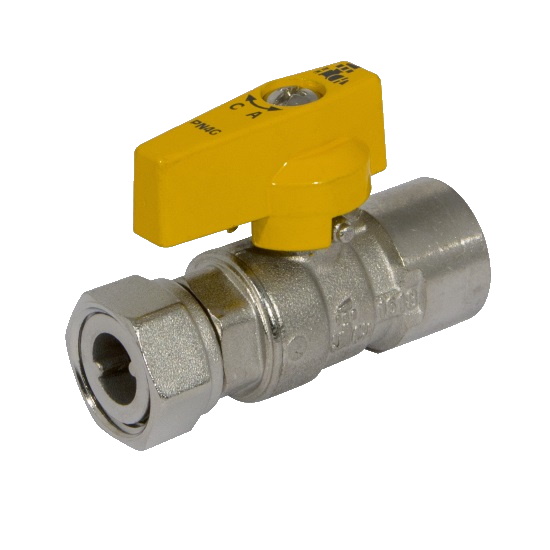

Ball valve with female connection and sliding nut

Print datasheet

Items

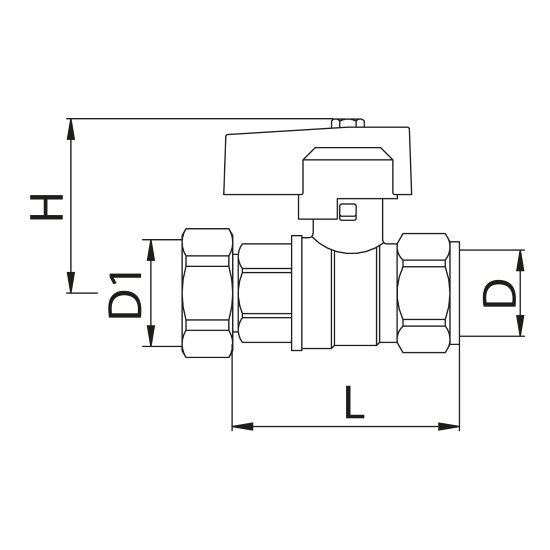

Code Size (D) Smooth Handle D1 H L Pack
528004040G 1/2" Aluminum 1/2" 44 68 10
528004050G 1/2" Aluminum 3/4" 44 69 10
528005050G 3/4" Aluminum 3/4" 42 73 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: -20 -+60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
