Art. 828

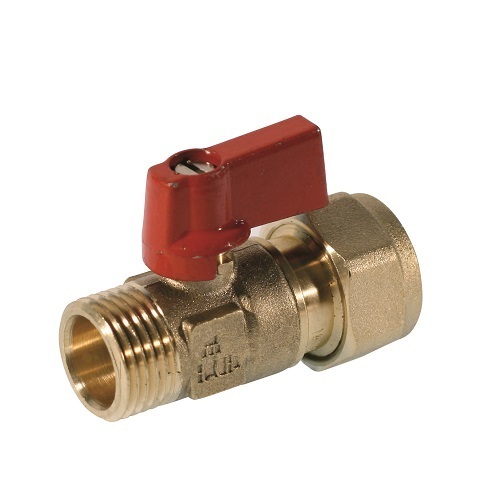

Ball valve male connection for pex pipe, lever aluminum handle

Print datasheet

Items

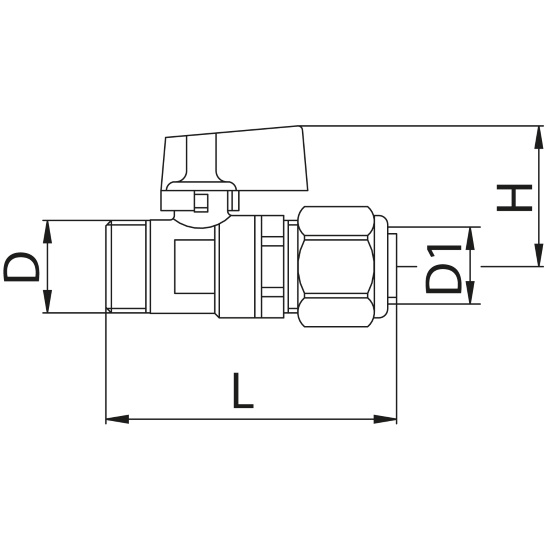

Code Size (D) Smooth Handle D1 H L Pack
828000253E 1/2" Aluminum 16X2 33 59 25
828000253F 1/2" Aluminum 16X2 33 59 25
828000259E 1/2" Aluminum 18X2 33 59 25
828000259F 1/2" Aluminum 18X2 33 59 25
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0-90°C
Max working pressure: 16bar
Body in bar brass (art. 426 -427)
Body in forged brass (art. 427G -828 -829)
Threads: ISO 228
