Art. 401TV

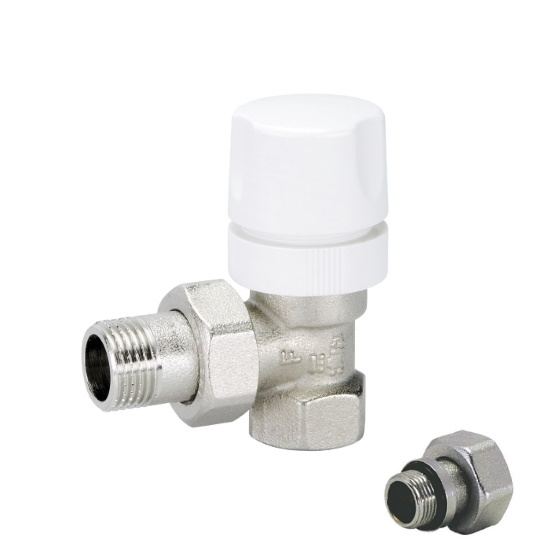

Angle thermostatic radiator valve with micrometric wheelhandle for iron pipe

Print datasheet

Items

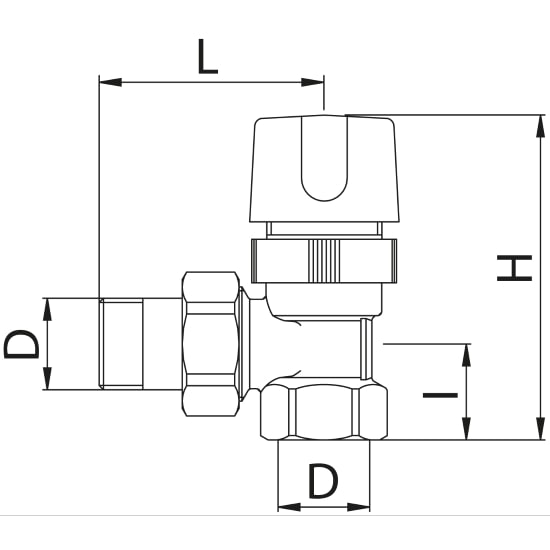

Code Version Size (D) Smooth Handle H I L Pack
401TN003V0 3/8" Plastic 77 20,5 51 10
401TN003VG O-Ring 3/8" Plastic 77 20,5 51 10
401TN004V0 1/2" Plastic 79 22,5 53 10
401TN004VG O-Ring 1/2" Plastic 79 22,5 53 10
401TN005V0 3/4" Plastic 84 25,5 58 5
401TN005VG O-Ring 3/4" Plastic 84 25,5 58 5
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Max differential pressure: 1,2 bar
Thermostatic head attachment: 30x1,5
Internal presetting device
Suitable for fittings for copper, PEX or multilayer piping
Available with thermostatic head: art.400 - art.400A
Allowed fluids: water (Glycole max percentage: 50%)
