Angle thermostatic radiator valve for copper

  • Angle thermostatic radiator valve for copper
  • Scheda tecnica - Angle thermostatic radiator valve for copper
  1. Angle thermostatic radiator valve for copper
  2. Scheda tecnica - Angle thermostatic radiator valve for copper
Art. 409TK

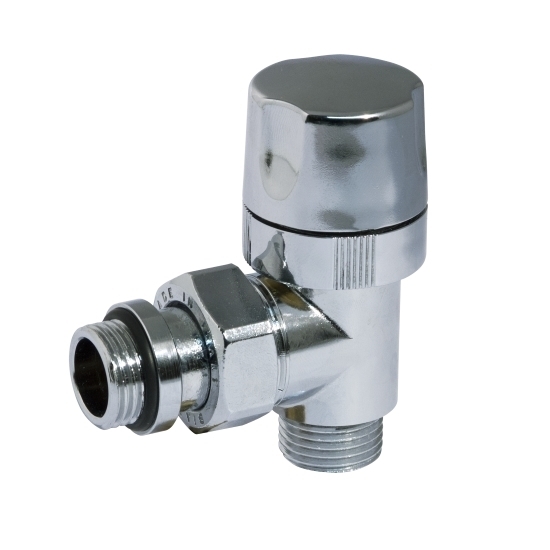

Angle thermostatic radiator valve for copper, multilayer and Pex tube

Print datasheet

Items

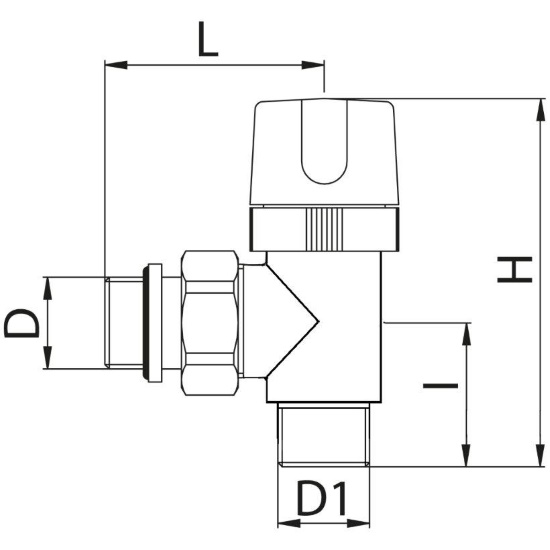

Code Version Size (D) Smooth Handle D1 H I L Pack
409TK004B0 O-Ring 1/2" Plastic 1/2" 85 28,5 55,5 2
409TK004C0 O-Ring 1/2" Plastic 1/2" 85 28,5 55,5 2
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Max differential pressure: 1,2 bar
Thermostatic head attachment: M30x1,5
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
