Angle thermostatic radiator valve for copper pipe

  • Angle thermostatic radiator valve for copper pipe
  • Scheda tecnica - Angle thermostatic radiator valve for copper pipe
  1. Angle thermostatic radiator valve for copper pipe
  2. Scheda tecnica - Angle thermostatic radiator valve for copper pipe
Art. 409T

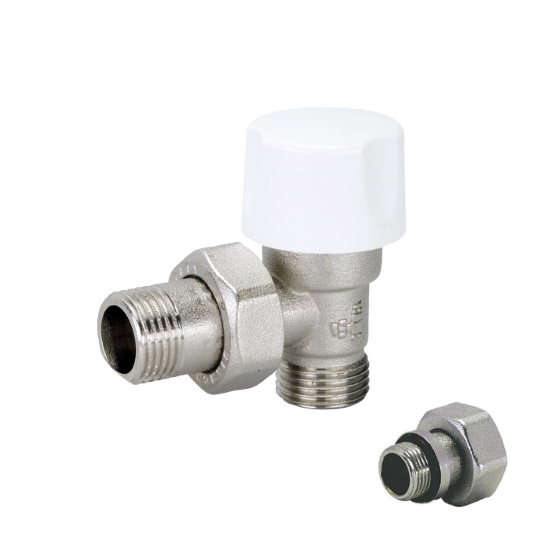

Angle thermostatic radiator valve for copper, multilayer and Pex pipe

Print datasheet

Items

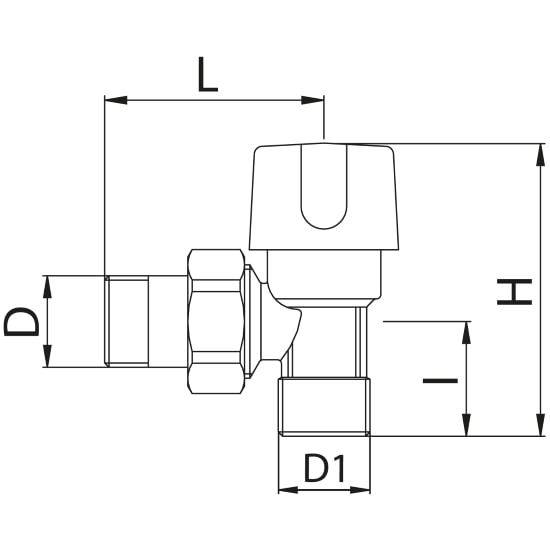

Code Version Size (D) Smooth Handle D1 H I L Pack
409TN00300 3/8" Plastic 1/2" 64 21,5 51 10
409TN0030G O-Ring 3/8" Plastic 1/2" 64 21,5 51 10
409TN00400 1/2" Plastic 1/2" 64 21,5 54 10
409TN0040G O-Ring 1/2" Plastic 1/2" 64 21,5 54 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Max differential pressure: 1,2 bar
Thermostatic head attachment: 30x1,5
Internal presetting device
Suitable for fittings for copper, PEX or multilayer piping
Available with thermostatic head: art.400 - art.400A
Allowed fluids: water (Glycole max percentage: 50%)
