Art. 407S

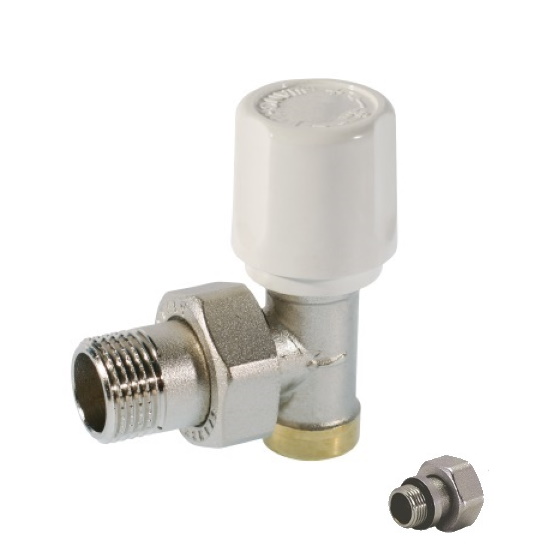

Angle radiator valve solder connection

Print datasheet

Items

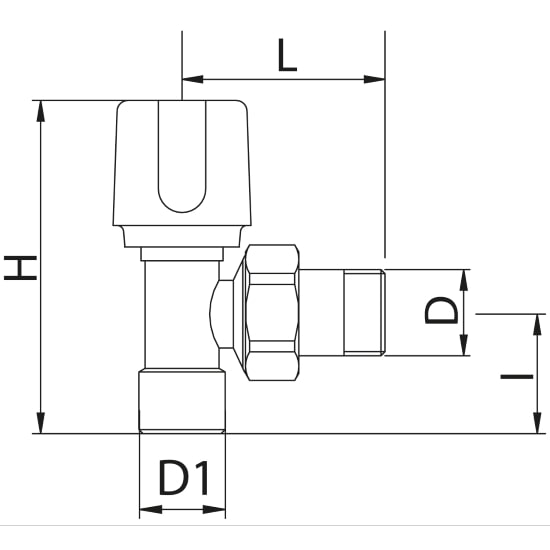

Code Version Size (D) Smooth Handle D1 H I L Pack
407SN32200 3/8" Plastic D.12 73 22 47 10
407SN3220G O-Ring 3/8" Plastic D.12 73 22 47 10
407SN42500 1/2" Plastic D.15 73 22 47 10
407SN4250G O-Ring 1/2" Plastic D.15 73 22 47 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
