Angle pipe union MF ball valve PN 25 and thermometer

  • Angle pipe union MF ball valve PN 25 and thermometer
  • Scheda tecnica - Angle pipe union MF ball valve PN 25 and thermometer
  1. Angle pipe union MF ball valve PN 25 and thermometer
  2. Scheda tecnica - Angle pipe union MF ball valve PN 25 and thermometer
Art. 422RM

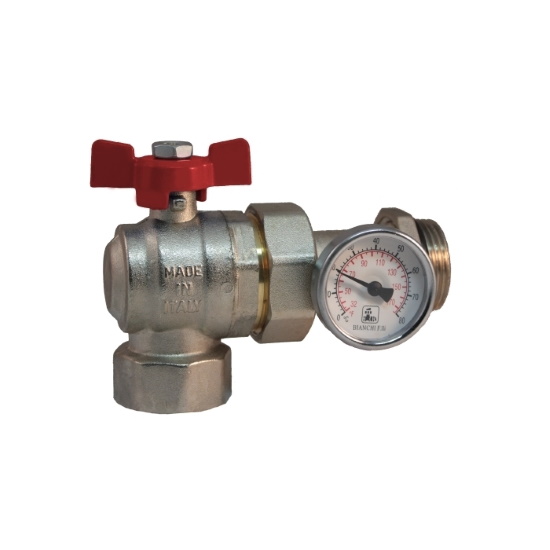

Angle ball valve MF PN25 with pipe union, thermometer, range 0 - 80°C, butterfly handle

Print datasheet

Items

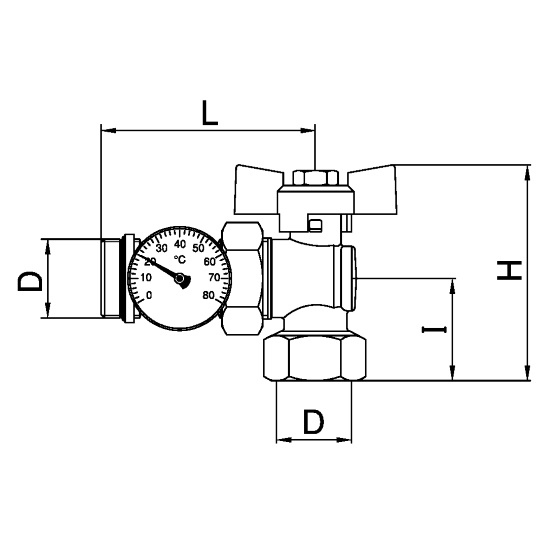

Code Version Size (D) Smooth Handle H I L Pack
422RM0060E O-Ring 1" Aluminum 90 42,5 94 5
422RM0060F O-Ring 1" Aluminum 90 42,5 94 5
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0-110°C
Body in forged brass
Threads: ISO 228

🍪
