Art. 527

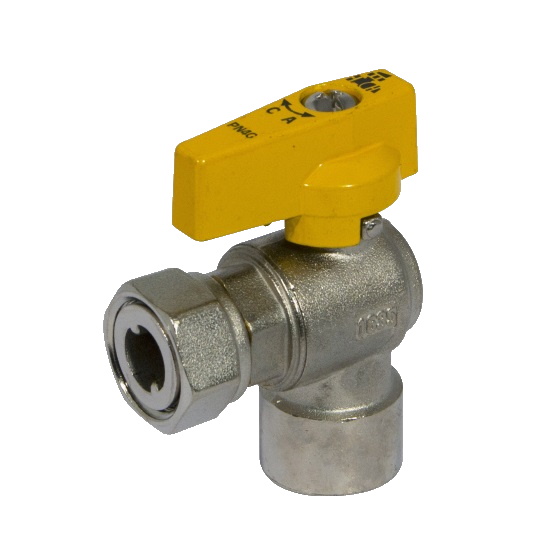

Angle ball valve with female connection and sliding nut

Print datasheet

Items

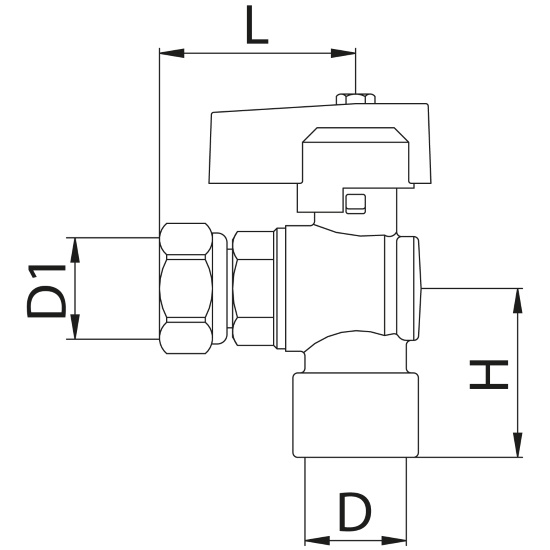

Code Size (D) Smooth Handle D1 H L Pack
527004040G 1/2" Aluminum 1/2" 34 39 10
527004050G 1/2" Aluminum 3/4" 34 39 10
527005050G 3/4" Aluminum 3/4" 36 42 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: -20 -+60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
