Angle ball valve for washing-machine with rosette

  • Angle ball valve for washing-machine with rosette
  • Scheda tecnica - Angle ball valve for washing-machine with rosette
  1. Angle ball valve for washing-machine with rosette
  2. Scheda tecnica - Angle ball valve for washing-machine with rosette
Art. 489

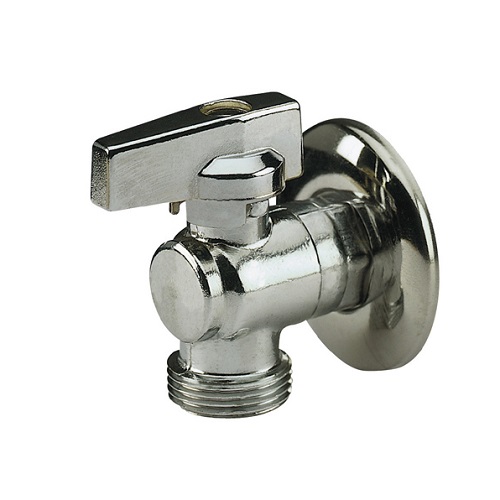

Angle ball valve for washing-machine with rosette

Print datasheet

Items

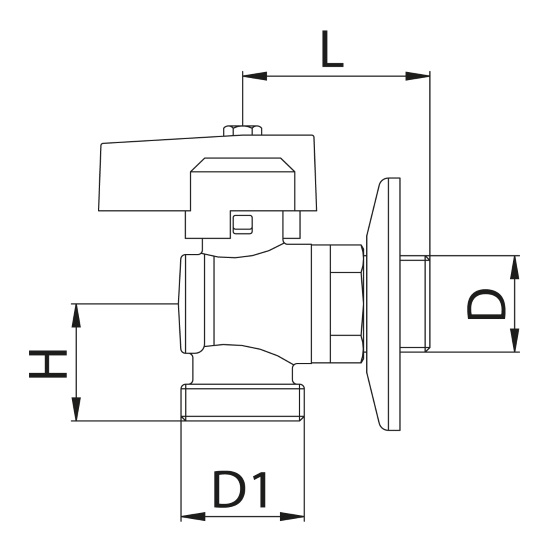

Code Size (D) Smooth Handle D1 H L Pack
489000040Q 1/2" Chrome 3/4" 26 42 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Flow: Standard
Working temperature: 0 -100°C
Max working pressure: PN10
Body in forged brass
Threads: ISO 228
