Art. 422T

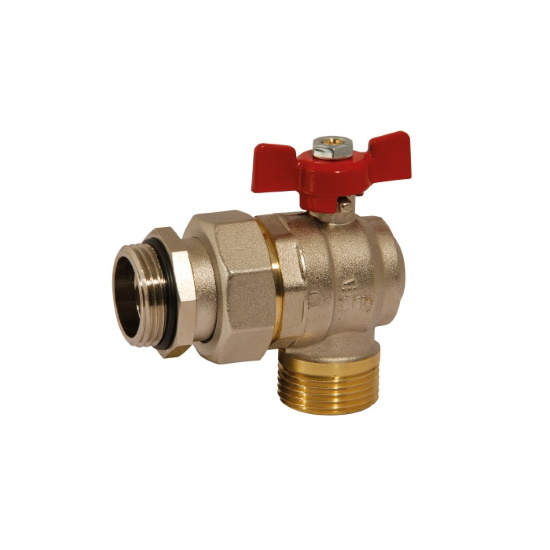

Angle MM ball valve PN25 with pipe union, butterfly handle

Print datasheet

Items

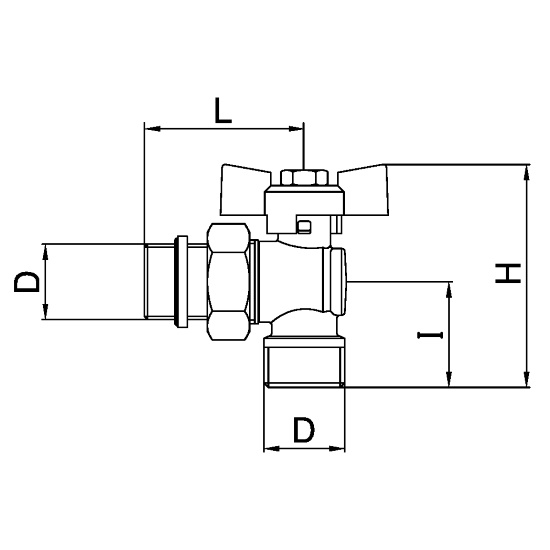

Code Version Size (D) Smooth Handle H I L Pack
422T00060E O-Ring 1" Aluminum 78 55,5 36 5
422T00060F O-Ring 1" Aluminum 78 55,5 36 5
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Working temperature: 0-110°C
Body in forged brass
Threads: ISO 228
