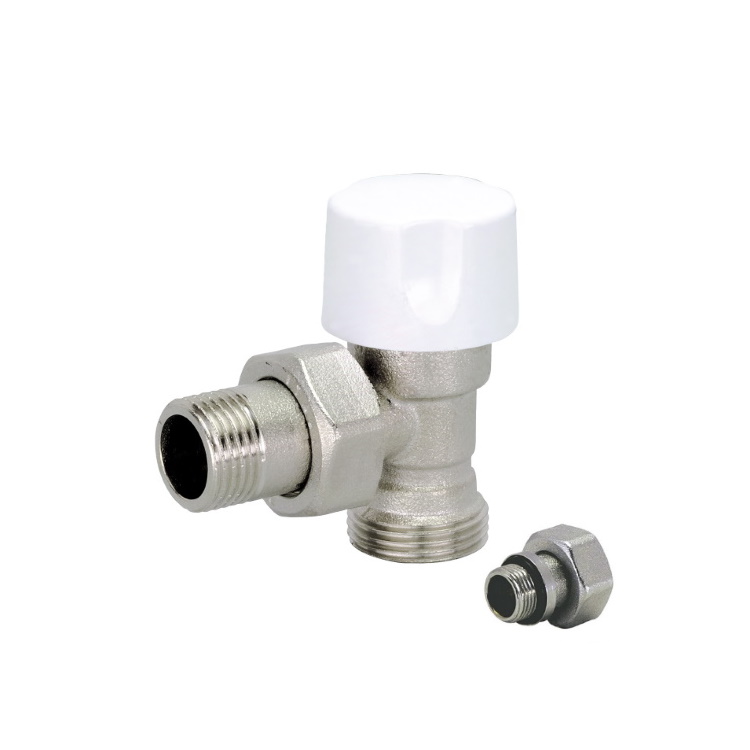

Angle Euroconus thermostatic radiator valve for copper pipe

  • Angle Euroconus thermostatic radiator valve for copper pipe
  • Scheda tecnica - Angle Euroconus thermostatic radiator valve for copper pipe
  1. Angle Euroconus thermostatic radiator valve for copper pipe
  2. Scheda tecnica - Angle Euroconus thermostatic radiator valve for copper pipe
Art. 409TE

Angle Euroconus thermostatic radiator valve for copper, multilayer and Pex pipe

Print datasheet

Items

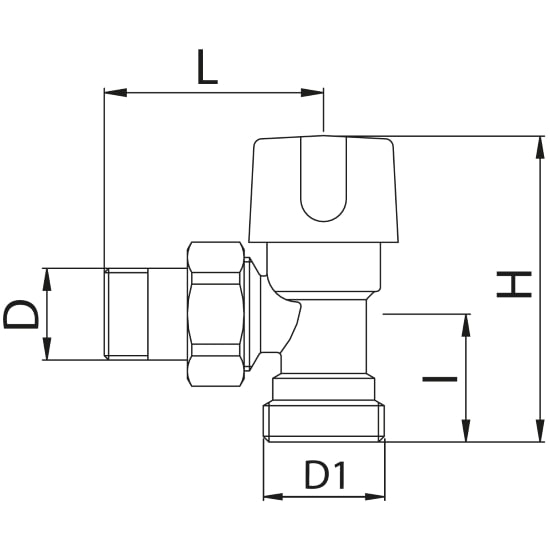

Code Version Size (D) Smooth Handle D1 H I L Pack
409TE00400 1/2" Plastic 3/4" 69 26 54 10
409TE0040G O-Ring 1/2" Plastic 3/4" 69 26 54 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Max differential pressure: 1,2 bar
Thermostatic head attachment: 30x1,5
Internal presetting device
Suitable for fittings for copper, PEX or multilayer piping
Available with thermostatic head: art.400 - art.400A
Allowed fluids: water (Glycole max percentage: 50%)
