Angle 24x19 thermostatic radiator valve for copper pipe

  • Angle 24x19 thermostatic radiator valve for copper pipe
  • Scheda tecnica - Angle 24x19 thermostatic radiator valve for copper pipe
  1. Angle 24x19 thermostatic radiator valve for copper pipe
  2. Scheda tecnica - Angle 24x19 thermostatic radiator valve for copper pipe
Art. 409TX

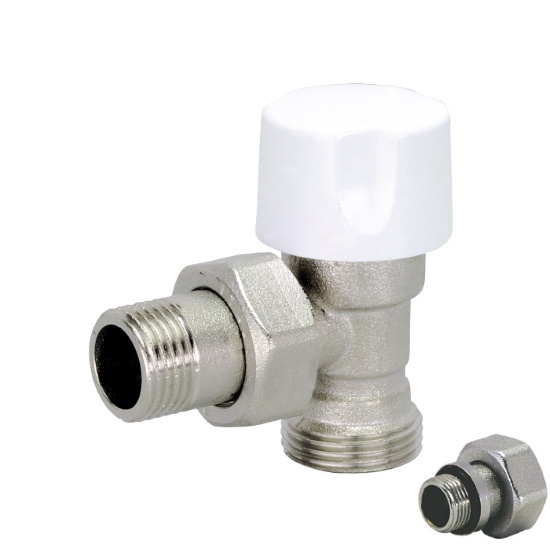

Angle 24x19 thermostatic radiator valve for copper, multilayer and Pex pipe

Print datasheet

Items

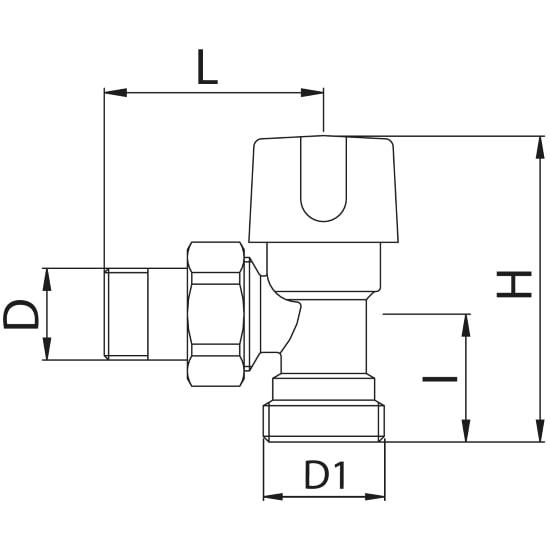

Code Version Size (D) Smooth Handle D1 H I L Pack
409TX00400 1/2" Plastic 24X19 69 26 54 10
409TX0040G O-Ring 1/2" Plastic 24X19 69 26 54 10
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Max differential pressure: 1,2 bar
Thermostatic head attachment: 30x1,5
Internal presetting device
Suitable for fittings for copper, PEX or multilayer piping
Available with thermostatic head: art.400 - art.400A
Allowed fluids: water (Glycole max percentage: 50%)
