Art. 418P

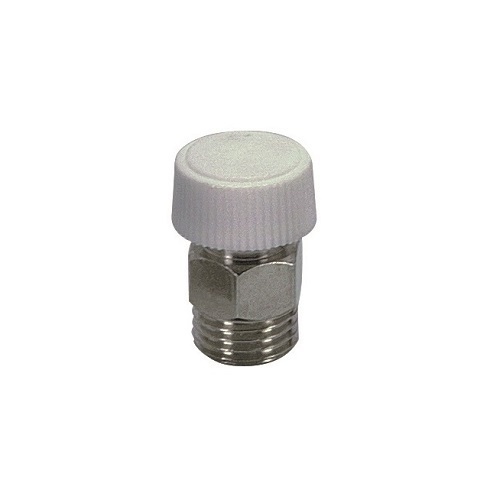

Air discharge valve with plastic handle

Print datasheet

Items

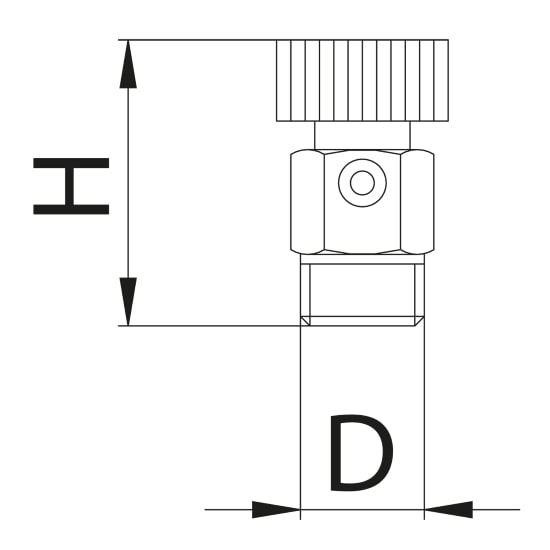

Code Size (D) Smooth Handle H Pack
4180C0010P 1/8" Plastic 25 100
4180C0020P 1/4" Plastic 25 100
4180C0030P 3/8" Plastic 25 100
4180C0040P 1/2" Plastic 25 50
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 110°C (solar: 150°C)
Max working pressure : 10 bar
Threads: ISO 228
Float: PP
Allowed fluids: water (Glycole max percentage: 50%)
