bim
Art. 657

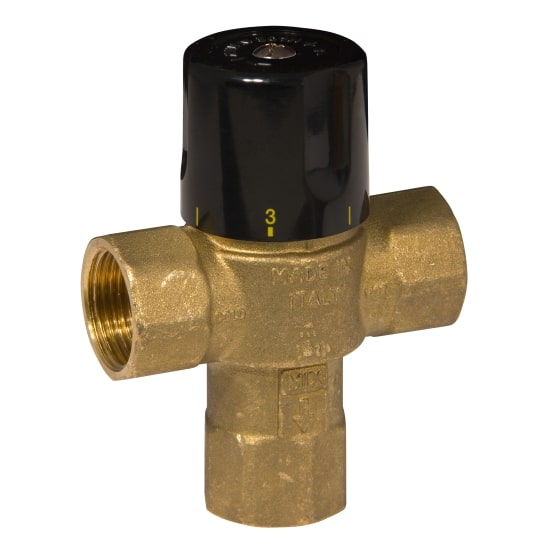

3 ways thermostatic mixing valve with female connection for solar system - high temperature

Print datasheet

Items

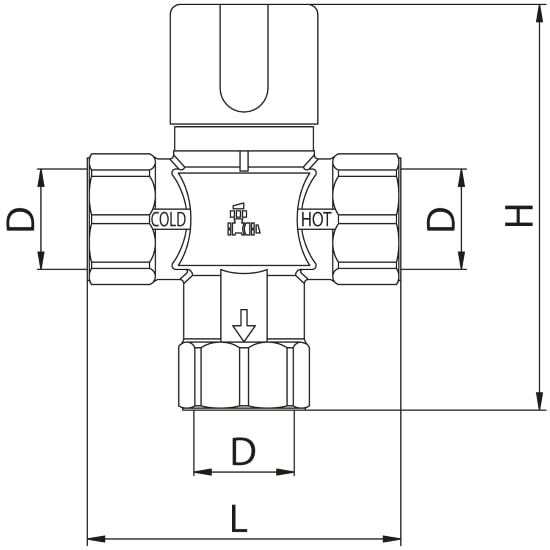

Code Size (D) Smooth Handle H L Pack
6570000400 1/2" Plastic 115 78 1
6570000500 3/4" Plastic 115 78 1
6570000600 1" Plastic 115 90 1
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Minimum working pressure: 2 bar
Maximum working pressure: 10 bar
Minimum cold inlet temperature: 4°C
Maximum hot inlet temperature: 85°C (solar: 110°C)
Mixed outlet temperature: 35°C-55°C
Threads: ISO 228
Allowed fluids: water (Glycole max percentage: 50%)
Install at water heater to set the maximum temperature for entire system
Set the maximum temperature for radiant floor installations
Point of use: set the maximum temperature of each fixture individually or group

🍪
