Art. 203C

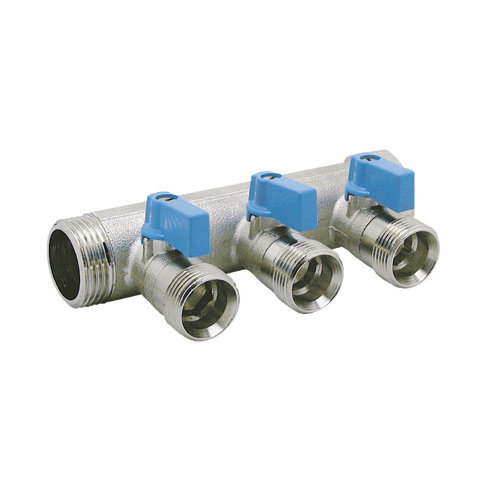

3 ways male manifold Euroconus with incorporated ball valves

Print datasheet

Items

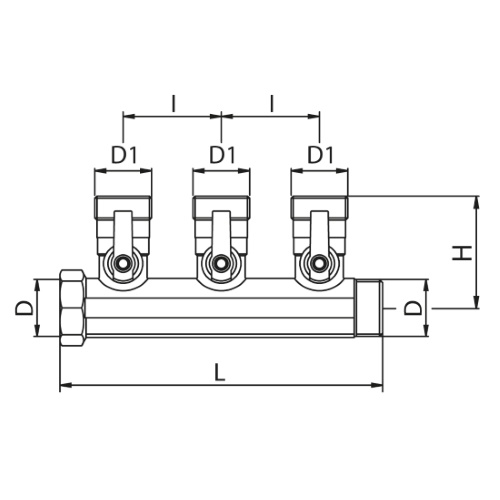

Code Size (D) Smooth Handle D1 H I L Pack
203C05050A 3/4" Aluminum 3/4" 55 45 148 5
203C05050D 3/4" Aluminum 3/4" 55 45 148 5
203C06050A 1" Aluminum 3/4" 55 45 148 5
203C06050D 1" Aluminum 3/4" 55 45 148 5
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer pipes
