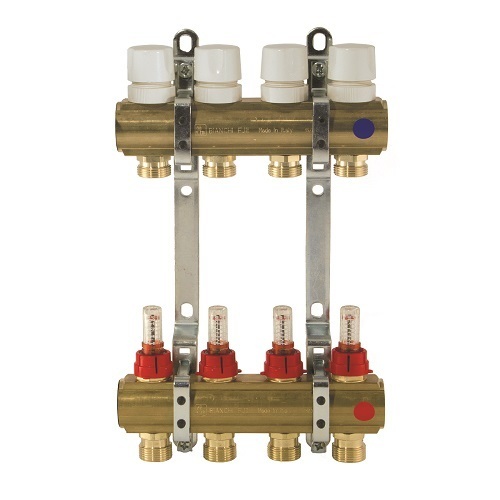

Brass manifolds, with therm. valves and flowmeters
Art. C322÷C3302
FF brass bar manifolds with 3/4" male Euroconus outlets, with thermostatic valves and flowmeters.
Manifold's brackets Art. 271
Working temperature: 5-70°C
Max working pressure: 6 bar
Flowmeter scale: 0-8 l/min
Items

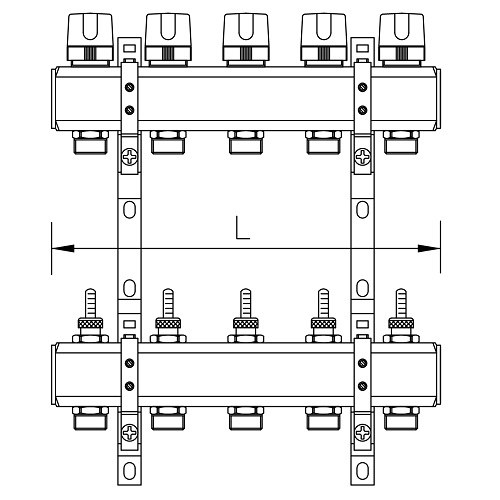

| Code | Size (D) | Smooth | Handle | Pack | D1 | I | L | ||||
| 2 ways | |||||||||||
| C322060500 | 1" | Plastic | 1 | 3/4" | 50.0 | 102.0 | |||||
| C322070500 | 1 1/4" | Plastic | 1 | 3/4" | 50.0 | 102.0 | |||||
| 3 ways | |||||||||||
| C323060500 | 1" | Plastic | 1 | 3/4" | 50.0 | 152.0 | |||||
| C323070500 | 1 1/4" | Plastic | 1 | 3/4" | 50.0 | 152.0 | |||||
| 4 ways | |||||||||||
| C324060500 | 1" | Plastic | 1 | 3/4" | 50.0 | 202.0 | |||||
| C324070500 | 1 1/4" | Plastic | 1 | 3/4" | 50.0 | 202.0 | |||||
| 5 ways | |||||||||||
| C325060500 | 1" | Plastic | 1 | 3/4" | 50.0 | 252.0 | |||||
| C325070500 | 1 1/4" | Plastic | 1 | 3/4" | 50.0 | 252.0 | |||||
| 6 ways | |||||||||||
| C326060500 | 1" | Plastic | 1 | 3/4" | 50.0 | 302.0 | |||||
| C326070500 | 1 1/4" | Plastic | 1 | 3/4" | 50.0 | 302.0 | |||||
| 7 ways | |||||||||||
| C327060500 | 1" | Plastic | 1 | 3/4" | 50.0 | 352.0 | |||||
| C327070500 | 1 1/4" | Plastic | 1 | 3/4" | 50.0 | 352.0 | |||||
| 8 ways | |||||||||||
| C328060500 | 1" | Plastic | 1 | 3/4" | 50.0 | 402.0 | |||||
| C328070500 | 1 1/4" | Plastic | 1 | 3/4" | 50.0 | 402.0 | |||||
| 9 ways | |||||||||||
| C329060500 | 1" | Plastic | 1 | 3/4" | 50.0 | 452.0 | |||||
| C329070500 | 1 1/4" | Plastic | 1 | 3/4" | 50.0 | 452.0 | |||||
| 10ways | |||||||||||
| C330060500 | 1" | Plastic | 1 | 3/4" | 50.0 | 502.0 | |||||
| C330070500 | 1 1/4" | Plastic | 1 | 3/4" | 50.0 | 502.0 | |||||
| 11ways | |||||||||||
| C330160500 | 1" | Plastic | 1 | 3/4" | 50.0 | 552.0 | |||||
| C330170500 | 1 1/4" | Plastic | 1 | 3/4" | 50.0 | 552.0 | |||||
| 12ways | |||||||||||
| C330260500 | 1" | Plastic | 1 | 3/4" | 50.0 | 602.0 | |||||
| C330270500 | 1 1/4" | Plastic | 1 | 3/4" | 50.0 | 602.0 | |||||
Smooth
- Yellow
- Chrome
- Nickel
- White
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer pipes
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets, accessories will be supplied separately, inside the same box
