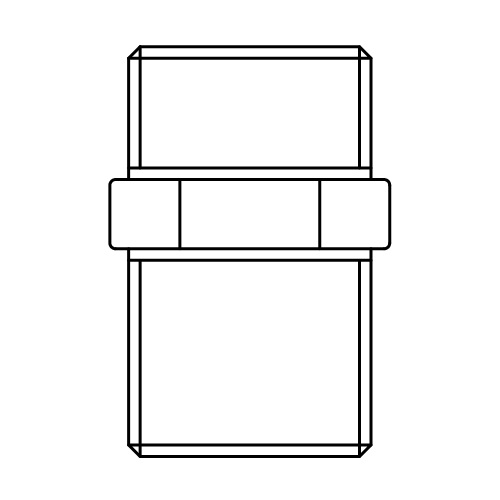

Nipple
Art. 7657
Nipple
Items
| Code | Size (D) | Smooth | Pack | I | L |
| 0765702000 | 1/4" | 50 | 8.5 | 22.0 | |
| 076570200C | 1/4" | 50 | 8.5 | 22.0 | |
| 0765703000 | 3/8" | 50 | 10.5 | 26.0 | |
| 076570300C | 3/8" | 50 | 10.5 | 26.0 | |
| 0765704000 | 1/2" | 50 | 11.0 | 27.0 | |
| 076570400C | 1/2" | 50 | 11.0 | 27.0 | |
| 0765705000 | 3/4" | 50 | 12.0 | 29.0 | |
| 076570500C | 3/4" | 50 | 12.0 | 29.0 | |
| 0765706000 | 1" | 25 | 12.5 | 31.0 | |
| 076570600C | 1" | 25 | 12.5 | 31.0 | |
| 0765707000 | 1 1/4" | 10 | 14.0 | 35.0 | |
| 0765708000 | 1 1/2" | 10 | 16.0 | 40.0 | |
| 0765709000 | 2" | 10 | 17.0 | 44.0 |
Smooth
- Yellow
- Chrome
- Nickel
- White
Working temperature: 0°C -100°C
Max working pressure: 10 bar
Male threads: ISO 7/1
Female threads: ISO 228
