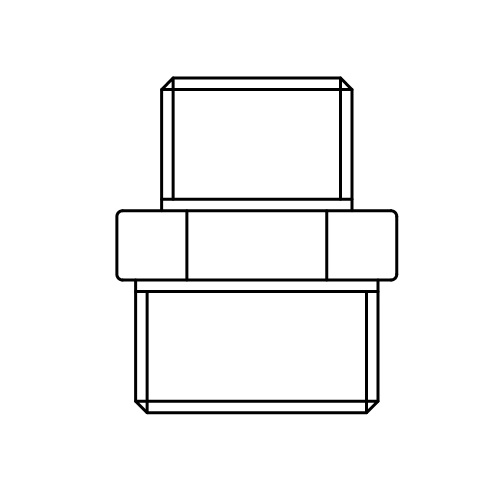

Reducing straight fitting
Art. 7656
Reducing straight fitting
Items
| Code | Size (D) | Smooth | Pack | D1 | L |
| 0765603020 | 3/8" | 50 | 1/4" | 25.0 | |
| 076560302C | 3/8" | 50 | 1/4" | 25.0 | |
| 0765604020 | 1/2" | 25 | 1/4" | 25.5 | |
| 076560402C | 1/2" | 25 | 1/4" | 25.5 | |
| 0765604030 | 1/2" | 25 | 3/8" | 26.5 | |
| 076560403C | 1/2" | 25 | 3/8" | 26.5 | |
| 0765605030 | 3/4" | 25 | 3/8" | 28.0 | |
| 076560503C | 3/4" | 25 | 3/8" | 28.0 | |
| 0765605040 | 3/4" | 25 | 1/2" | 28.5 | |
| 076560504C | 3/4" | 25 | 1/2" | 28.5 | |
| 0765606040 | 1" | 25 | 1/2" | 30.5 | |
| 076560604C | 1" | 25 | 1/2" | 30.5 | |
| 0765606050 | 1" | 25 | 3/4" | 31.0 | |
| 076560605C | 1" | 25 | 3/4" | 31.0 | |
| 0765607050 | 1 1/4" | 20 | 3/4" | 34.0 | |
| 0765607060 | 1 1/4" | 15 | 1" | 34.0 | |
| 0765608060 | 1 1/2" | 10 | 1" | 38.0 | |
| 0765608070 | 1 1/2" | 10 | 1 1/4" | 40.0 | |
| 0765609070 | 2" | 5 | 1 1/4" | 43.0 | |
| 0765609080 | 2" | 5 | 1 1/2" | 43.0 |
Smooth
- Yellow
- Chrome
- Nickel
- White
Working temperature: 0°C -100°C
Max working pressure: 10 bar
Male threads: ISO 7/1
Female threads: ISO 228
