FF full bore ball valve with square lock shield handle
Art. 436
FF full bore ball valve with square lock shield handle
Items

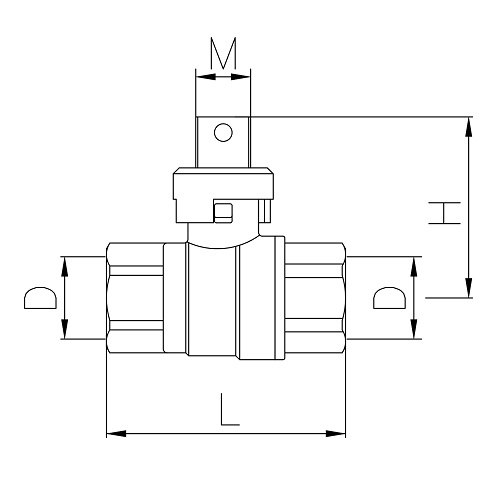

| Code | Size (D) | Smooth | Handle | Pack | I | L | h |
| 436000040G | 1/2" | Aluminum | 12 | 15.0 | 60.0 | 42.0 | |
| 436000050G | 3/4" | Aluminum | 8 | 15.0 | 69.0 | 47.0 | |
| 436000060G | 1" | Aluminum | 6 | 15.0 | 81.0 | 52.0 | |
| 436000073G | 1 1/4" | Aluminum | 4 | 17.0 | 94.0 | 62.0 |
Smooth
- Yellow
- Chrome
- Nickel
- White
Flow: Full
Working temperature: -20 -+60°C
Max working pressure: MOP5
Body in forged brass
Threads: ISO 228
