Bianchi F.lli

Straight thermostatic radiator valve for copper with handle

Art. 411TV

Straight thermostatic radiator valve with micrometric wheelhandle for copper, multilayer and Pex pipe

Straight thermostatic radiator valve for copper with handle %> Scheda tecnica - Straight thermostatic radiator valve for copper with handle

Items

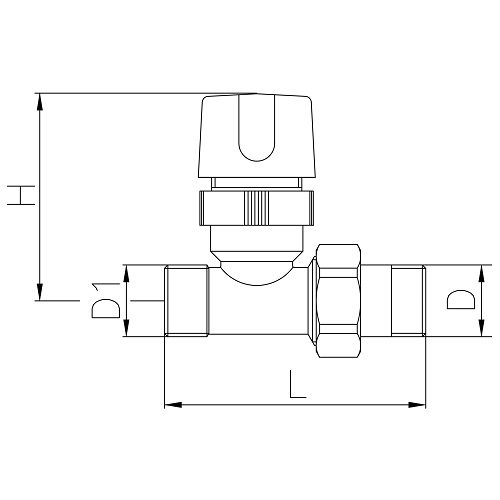

Code Version Size (D) Smooth Handle Pack D1 L h
411TN003V0 3/8" Plastic 10 1/2" 71.0 63.0
411TN003VG O-Ring 3/8" Plastic 10 1/2" 71.0 63.0
411TN004V0 1/2" Plastic 10 1/2" 74.0 63.0
411TN004VG O-Ring 1/2" Plastic 10 1/2" 74.0 63.0
Smooth
  • Yellow
  • Chrome
  • Nickel
  • White

Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Max differential pressure: 1,2 bar
Thermostatic head attachment: 30x1,5
Internal presetting device
Suitable for fittings for copper, PEX or multilayer piping
Available with thermostatic head: art.400 - art.400A
Allowed fluids: water (Glycole max percentage: 50%)
