Angle lockshield-valve for copper, multilayer and Pex pipe
Art. 410B
Angle lockshield-valve for copper, multilayer and Pex pipe
Items

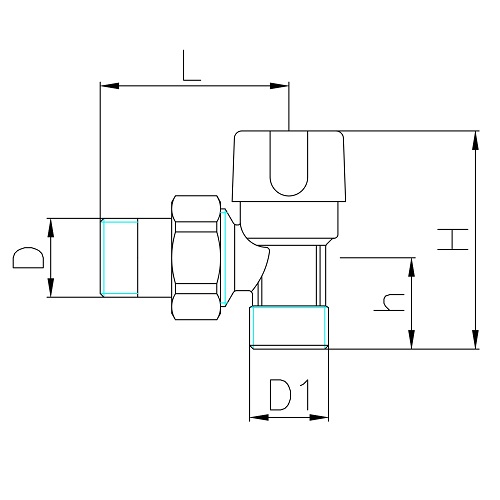

| Code | Version | Size (D) | Smooth | Pack | D1 | I | L | h |
| 410BN00300 | 3/8" | 10 | 1/2" | 21.5 | 50.0 | 53.5 | ||
| 410BN0030G | O-Ring | 3/8" | 10 | 1/2" | 21.5 | 50.0 | 53.5 | |
| 410BN00400 | 1/2" | 10 | 1/2" | 21.5 | 51.0 | 53.5 | ||
| 410BN0040G | O-Ring | 1/2" | 10 | 1/2" | 21.5 | 51.0 | 53.5 |
Smooth
- Yellow
- Chrome
- Nickel
- White
Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
