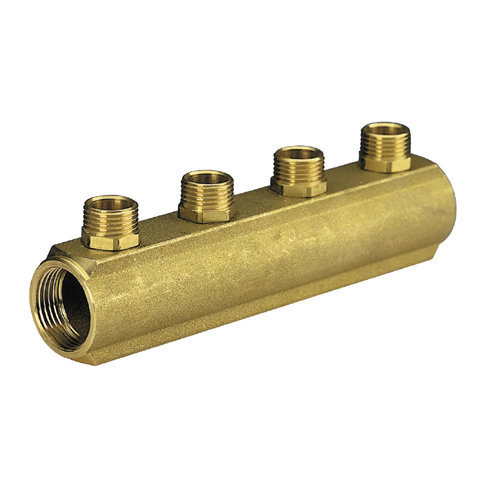

Brass bar manifold with 3/4" male outlets, type Euroconus
Art. 242E÷250E
Brass bar manifold with 3/4" male outlets, type Euroconus, interaxis 50 mm
Items

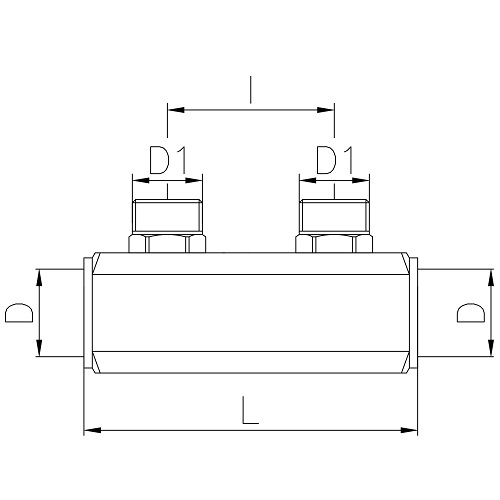

| Code | Size (D) | Smooth | Pack | D1 | I | L | |||||
| 2 ways | |||||||||||
| 242E050500 | 3/4" | 6 | 3/4" | 50.0 | 102.0 | ||||||
| 242E060500 | 1" | 6 | 3/4" | 50.0 | 102.0 | ||||||
| 3 ways | |||||||||||
| 243E050500 | 3/4" | 4 | 3/4" | 50.0 | 152.0 | ||||||
| 243E060500 | 1" | 4 | 3/4" | 50.0 | 152.0 | ||||||
| 4 ways | |||||||||||
| 244E050500 | 3/4" | 4 | 3/4" | 50.0 | 202.0 | ||||||
| 244E060500 | 1" | 4 | 3/4" | 50.0 | 202.0 | ||||||
| 5 ways | |||||||||||
| 245E050500 | 3/4" | 3 | 3/4" | 50.0 | 252.0 | ||||||
| 245E060500 | 1" | 3 | 3/4" | 50.0 | 252.0 | ||||||
| 6 ways | |||||||||||
| 246E050500 | 3/4" | 4 | 3/4" | 50.0 | 302.0 | ||||||
| 246E060500 | 1" | 4 | 3/4" | 50.0 | 302.0 | ||||||
| 7 ways | |||||||||||
| 247E050500 | 3/4" | 2 | 3/4" | 50.0 | 352.0 | ||||||
| 247E060500 | 1" | 2 | 3/4" | 50.0 | 352.0 | ||||||
| 8 ways | |||||||||||
| 248E050500 | 3/4" | 2 | 3/4" | 50.0 | 402.0 | ||||||
| 248E060500 | 1" | 2 | 3/4" | 50.0 | 402.0 | ||||||
| 9 ways | |||||||||||
| 249E060500 | 1" | 1 | 3/4" | 50.0 | 452.0 | ||||||
| 10ways | |||||||||||
| 250E060500 | 1" | 1 | 3/4" | 50.0 | 502.0 | ||||||
Smooth
- Yellow
- Chrome
- Nickel
- White
Max working temperature: 110°C
Max working pressure: 10 bar
Body in extruded brass bar
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer pipes
