Double pattern manifold
Art. 230
Double pattern manifold
Items

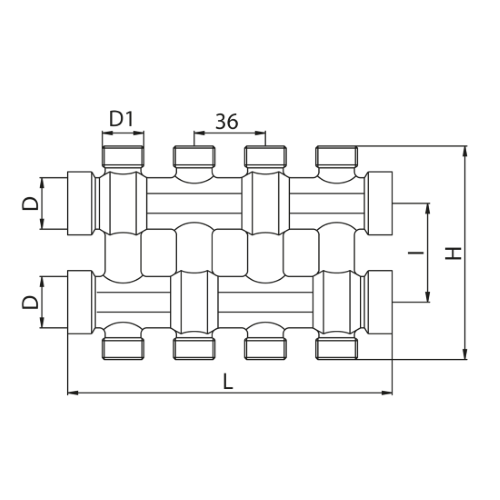

| Code | Size (D) | Smooth | Pack | D1 | I | L | h | ||||
| 4 ways | |||||||||||
| 2304000500 | 3/4" | 2 | 1/2" | 50.0 | 164.0 | 108.0 | |||||
| 6 ways | |||||||||||
| 2306000500 | 3/4" | 2 | 1/2" | 50.0 | 236.0 | 108.0 | |||||
| 8 ways | |||||||||||
| 2308000500 | 3/4" | 2 | 1/2" | 50.0 | 308.0 | 108.0 | |||||
Smooth
- Yellow
- Chrome
- Nickel
- White
Max working temperature: 110°C
Max working pressure: 10 bar
Body in casted brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Outlets inner diameter: 16 mm
