DZR brass manifold with 3 male outlets Euroconus
Art. 203E
DZR brass manifold with 3 male outlets Euroconus
CW602N_DZR
Items

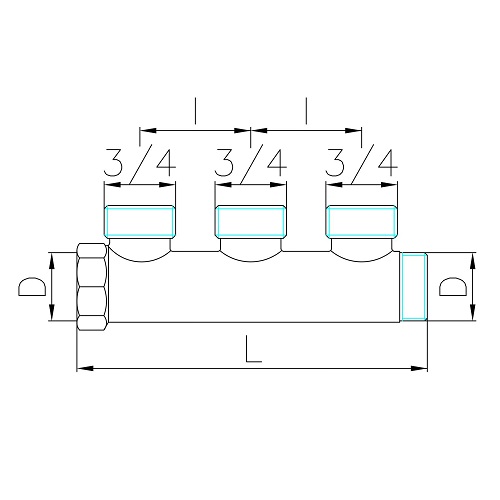

| Code | Size (D) | Smooth | Pack | D1 | I | L | |||||
| Inner diameter: 18mm | |||||||||||
| 203E05050A | 3/4" | 8 | 3/4" | 50.0 | 158.0 | ||||||
| 203EC5050A | 3/4" | 8 | 3/4" | 50.0 | 158.0 | ||||||
| 203E06050A | 1" | 6 | 3/4" | 50.0 | 159.0 | ||||||
Smooth
- Yellow
- Chrome
- Nickel
- White
Max working temperature: 110°C
Max working pressure: 10 bar
Body in forged brass CW617N
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer pipes
Suitable for sanitary and heating systems
