FF stainless steel AISI 304L manifolds with 3/4” male Euroconus outlets, with thermostatic valves and flow meters

Art. A322÷A3302

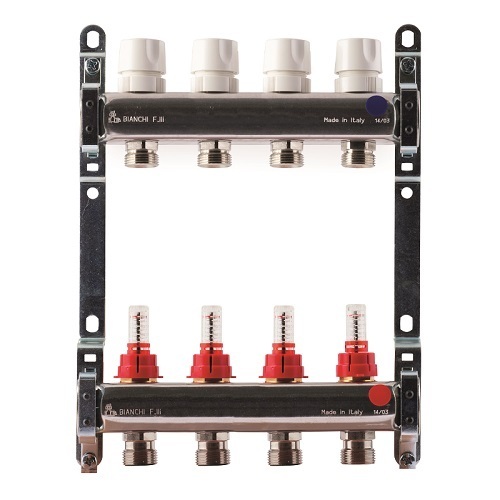

FF stainless steel AISI 304L manifolds with 3/4” male Euroconus outlets, with thermostatic valves and flow meters. Manifold’s brackets Art. 271.

Collettori FF in acciaio AISI 304L con attacchi 3/4” M Eurocono, con vitoni termostatici e misuratori di portata Scheda tecnica - FF stainless steel AISI 304L manifolds with 3/4” male Euroconus outlets, with thermostatic valves and flow meters
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

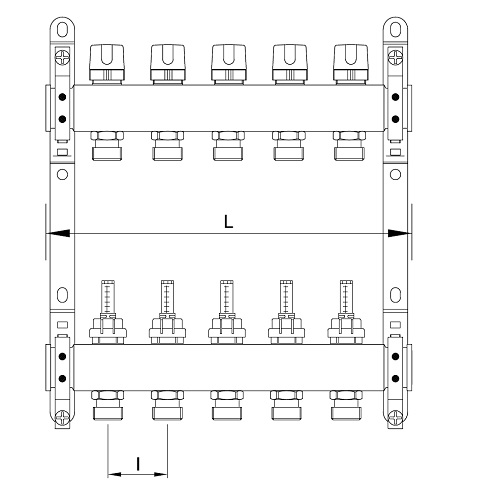

Code Size (D) Smooth Pack D1 I L
2 ways
A322060500 1" 1 3/4" 50.0 143.0
3 ways
A323060500 1" 1 3/4" 50.0 193.0
4 ways
A324060500 1" 1 3/4" 50.0 243.0
5 ways
A325060500 1" 1 3/4" 50.0 293.0
6 ways
A326060500 1" 1 3/4" 50.0 343.0
7 ways
A327060500 1" 1 3/4" 50.0 393.0
8 ways
A328060500 1" 1 3/4" 50.0 443.0
9 ways
A329060500 1" 1 3/4" 50.0 493.0
10 ways
A330060500 1" 1 3/4" 50.0 543.0
11 ways
A330160500 1" 1 3/4" 50.0 593.0
12 ways
A330260500 1" 1 3/4" 50.0 643.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 5-70°C
Max working pressure: 6 bar
Filetti / Threads: ISO 228
Flowmeter scale: 0-8 l/min
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
Available with actuators: art.350-351
Ball valves must be used in totally open-close position
Manifolds will be supplied mounted on the brackets; accessories will be supplied separately, inside the same box
