Bianchi F.lli

Double gas ball valve female connection with hose attachment

Art. 518

Double gas ball valve female connection with hose attachment

Rubinetto doppio a sfera con portagomma, attacco femmina Scheda tecnica - Double gas ball valve female connection with hose attachment
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

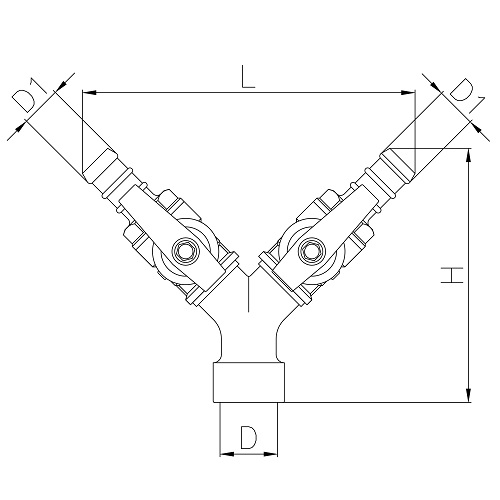

Code Size (D) Smooth Pack D1 H L
518000040G 1/2" 5 15 92 120.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Flow: Standard
Working temperature: -20 - +60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
