Bianchi F.lli

Heavy pattern ball bibcock with hose connection, aluminum lever handle

Art. 485

Heavy pattern ball bibcock with hose connection, aluminum lever handle

Rubinetto a sfera curvo con portagomma, maniglia a leva in alluminio, tipo pesante Scheda tecnica - Heavy pattern ball bibcock with hose connection, aluminum lever handle
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

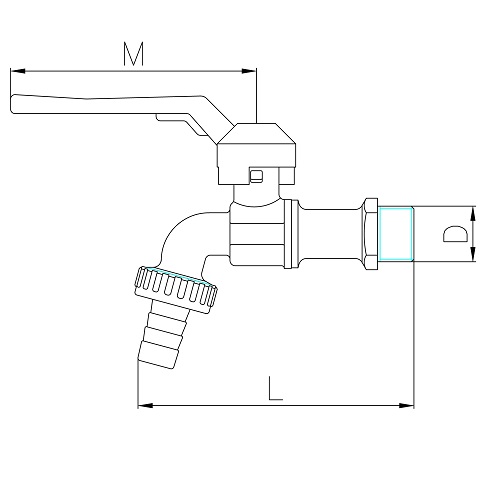

Code Size (D) Smooth Pack D1 L M
485000030F 3/8" 6 3/4" 101.0 84.0
485000040F 1/2" 6 3/4" 102.0 84.0
485000050F 3/4" 6 1" 115.0 84.0
485000060F 1" 5 1 1/4" 138.0 88.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0-110°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
