Bianchi F.lli

Safety valve, female connection

Art. 447B-1

Safety valve, female connection

Valvola di sicurezza attacco femmina Scheda tecnica - Safety valve, female connection
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

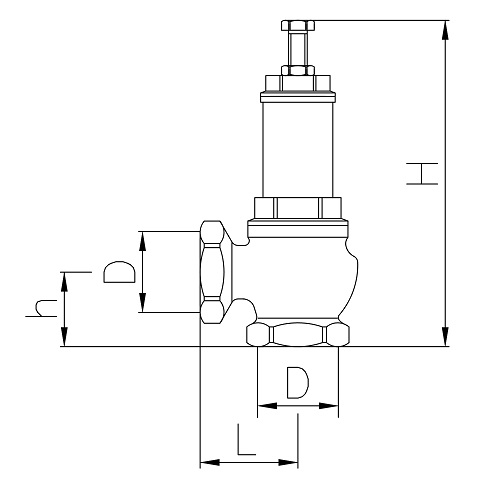

Code Version Size (D) Smooth Pack H L h
447B000706 6 Bar 1 1/4" 1 191 54.0 45.0
447B000710 10 Bar 1 1/4" 1 191 54.0 45.0
447B000806 6 Bar 1 1/2" 1 207 60.0 47.0
447B000810 10 Bar 1 1/2" 1 207 60.0 47.0
447B000906 6 Bar 2" 1 233 72.0 60.0
447B000910 10 Bar 2" 1 233 72.0 60.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0-110°C (solare/solar 140°C)
Max working pressure: 10 bar
Opening overpressure: 20%
Closing differential: 20%
Body in forged brass
Threads: ISO 228
The set pressure is stamped in relief on the cap
