Bianchi F.lli

FF DZR brass ball valve PN25, butterfly handle

Art. 435BZ

FF DZR brass ball valve PN25, butterfly handle

Valvola a sfera FF PN25 in ADZ con maniglia a farfalla Scheda tecnica - FF DZR brass ball valve PN25, butterfly handle
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

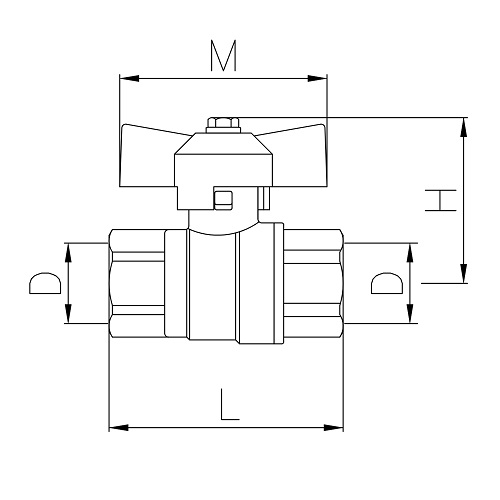

Code Size (D) Smooth Pack H L M
435B0004ZE 1/2” 20 38 50.0 54.0
435B0004ZF 1/2” 20 38 50.0 54.0
435B0005ZE 3/4” 15 45 56.0 54.0
435B0005ZF 3/4” 15 45 56.0 54.0
435B0006ZE 1” 8 51 67.0 64.0
435B0006ZF 1” 8 51 67.0 64.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0-110°C
Max working pressure: 25 bar (art. 425BZ – 438)
Max working pressure: 16 bar (art. 537E – 560E)
Body in forged brass
Threads: ISO 228
