Bianchi F.lli

FF ball valve PN25 with drain and iron lever handle

Art. 433

FF ball valve PN25 with drain and iron lever handle

Valvola a sfera FF PN25 con spurgo, maniglia a leva in ferro Scheda tecnica - FF ball valve PN25 with drain and iron lever handle
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

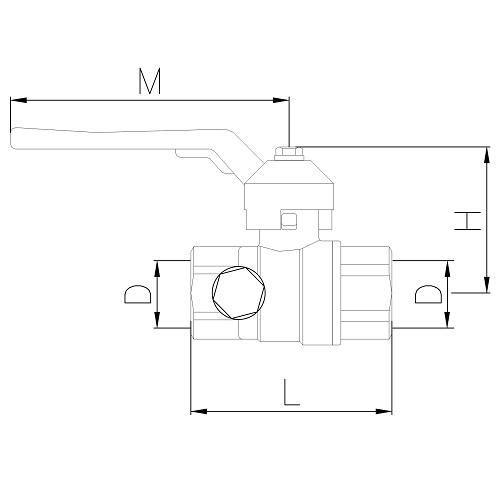

Code Size (D) Smooth Pack H L M
433000040F 1/2" 20 49 58.0 84.0
433000050F 3/4" 12 55 63.0 107.0
433000060F 1" 12 60 73.0 107.0
433000070F 1 1/4" 10 75 86.0 138.0
433000080F 1 1/2" 5 81 93.0 138.0
433000090F 2" 2 96 112.0 155.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0-110°C
Body in forged brass
Threads: ISO 228
