Bianchi F.lli

FF DZR brass ball valve PN25, iron lever handle

Art. 425BZ

FF DZR brass ball valve PN25, iron lever handle

Valvola a sfera FF PN25 in ADZ con maniglia a leva in ferro Scheda tecnica - FF DZR brass ball valve PN25, iron lever handle
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

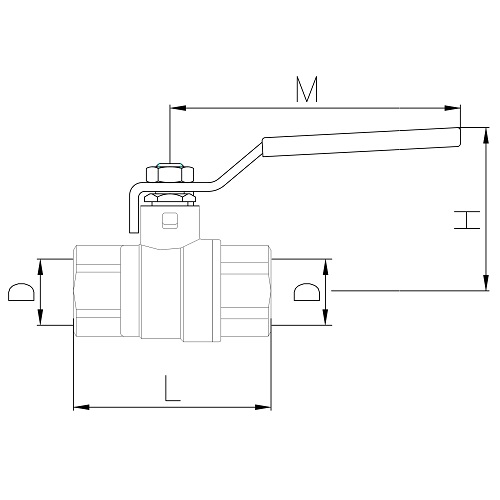

Code Size (D) Smooth Pack H L M
425B0003ZA 3/8 12 38 47.5 81.0
425B0004ZA 1/2 12 52 50.0 93.0
425B0005ZA 3/4 10 57 57.0 93.0
425B0006ZA 1 6 62 68.0 112.0
425B0007ZA 1 1/4 6 66 84.0 112.0
425B0008ZA 1 1/2 4 77 93.5 143.0
425B0009ZA 2 4 81 108.0 143.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0-110°C
Max working pressure: 25 bar (art. 425BZ – 438)
Max working pressure: 16 bar (art. 537E – 560E)
Body in forged brass
Threads: ISO 228
