MF gas ball valve with iron lever handle

Art. 424R

MF gas ball valve with iron lever handle

Valvola a sfera MF per gas, maniglia a leva in ferro Scheda tecnica - MF gas ball valve with iron lever handle
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

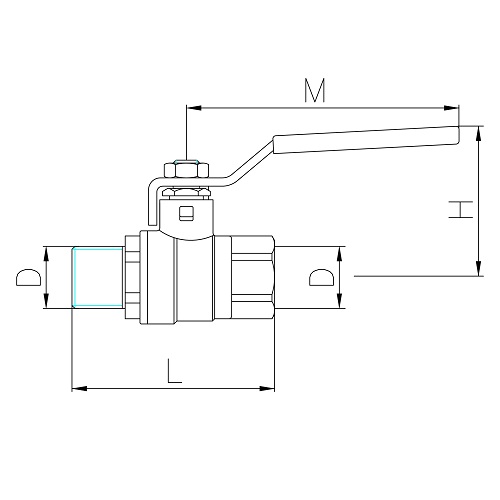

Code Size (D) Smooth Pack H L M
According to norm UNI EN 331
424R00043B 1/2" 12 52 54.0 93.0
424R00053B 3/4" 10 57 66.0 93.0
424R00063B 1" 6 62 77.0 112.0
424R00073B 1 1/4" 6 66 91.0 112.0
424R00083B 1 1/2" 4 77 101.0 143.0
424R00093B 2" 2 81 117.0 143.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Flow: Standard
Working temperature: -20 - +60°C
Max working pressure: MOP5
Body in forged brass
Female Threads: ISO 7/1 Rp
Male Thread: ISO 7/1 R
