MM full bore ball valve PN25 with butterfly handle

Art. 423

MM full bore ball valve PN25 with butterfly handle

Valvola a sfera passaggio totale MM PN25, maniglia a farfalla Scheda tecnica - MM full bore ball valve PN25 with butterfly handle
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

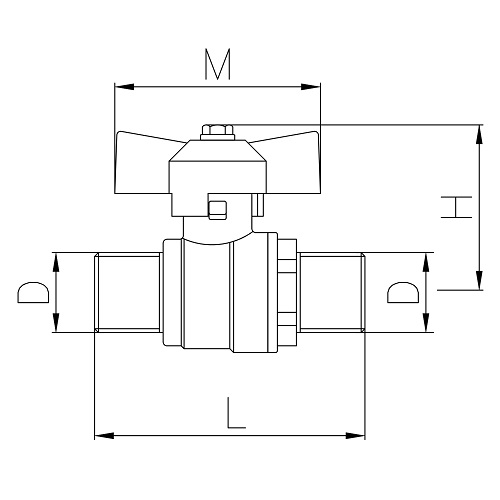

Code Size (D) Smooth Pack H L M
423T00040F 1/2" 15 42 62.0 54.0
423T00050F 3/4" 8 45 70.0 54.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Flow: Standard
Working temperature: 0-110°C
Max working pressure: 25 bar
Body in forged brass
Anti blowing stem
Threads: ISO 228
Valves 425B - 424B and 425A - 424A in sizes 1 1/4” - 1 1/2” - 2” are the same articles
