Pipe union with OR MF ball valve PN 25 with butterfly handle
Art. 422BC
Pipe union and metal ring MF ball valve PN 25 with butterfly handle
Items

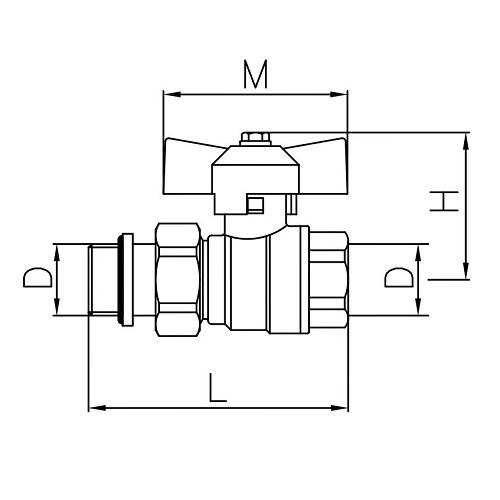

| Code | Version | Size (D) | Smooth | Handle | Pack | I | L | h |
| 422BC004AE | O-Ring | 1/2" | Aluminum | 12 | 54.0 | 80.0 | 42.0 | |
| 422BC004AF | O-Ring | 1/2" | Aluminum | 12 | 54.0 | 80.0 | 42.0 | |
| 422BC005AE | O-Ring | 3/4" | Aluminum | 8 | 54.0 | 87.0 | 45.0 | |
| 422BC005AF | O-Ring | 3/4" | Aluminum | 8 | 54.0 | 87.0 | 45.0 | |
| 422BC006AE | O-Ring | 1" | Aluminum | 5 | 64.0 | 100.0 | 51.0 | |
| 422BC006AF | O-Ring | 1" | Aluminum | 5 | 64.0 | 100.0 | 51.0 |
Smooth
- Yellow
- Chrome
- Nickel
- White
Working temperature: 0-110°C
Body in forged brass
Threads: ISO 228
