Straight coupling for radiator unit

Art. 416

Straight coupling for radiator unit

Raccordo diritto per termosifone Scheda tecnica - Straight coupling for radiator unit
Legend
CW510LCW510L - low lead CW602NCW602N - DZR solarsolar

Items

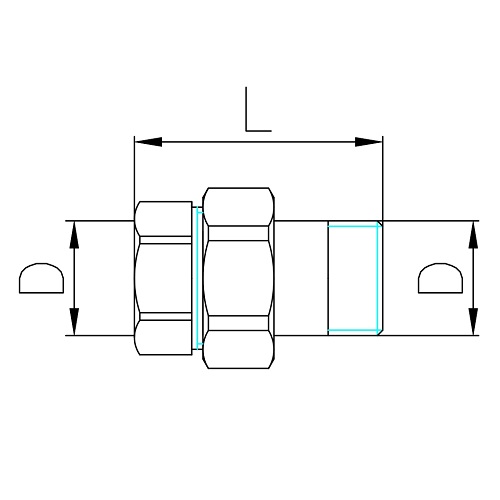

Code Size (D) Smooth Pack L
4160000300 3/8" 50 43.0
4160C00300 3/8" 50 43.0
4160000400 1/2" 30 45.0
4160C00400 1/2" 30 45.0
4160000500 3/4" 15 53.0
4160C00500 3/4" 15 53.0
4160000600 1" 10 59.0
4160C00600 1" 10 59.0

* the last letter of the code indicates the type and color of the handle

Smooth
  • Yellow
  • Chrome
  • Nickel
  • White
Aluminum handle
  • F Red
  • E Blue
  • G Yellow
  • M Black
Iron handle
  • A Red
  • D Blue
  • B Yellow
  • N Black

Working temperature: 0°C – 100°C
Max working pressure: 10 bar
Threads: ISO 228
