Angle lockshield-valve for copper, multilayer and Pex pipe
Art. 414B
Angle lockshield-valve for copper, multilayer and Pex pipe
Items

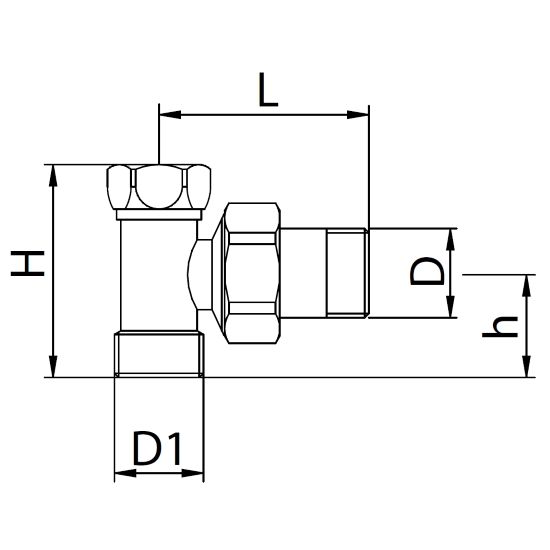

| Code | Version | Size (D) | Smooth | Pack | D1 | I | L | h |
| 4140N003B0 | 3/8" | 10 | 1/2" | 21.5 | 46.0 | 44.5 | ||
| 4140N003BG | O-Ring | 3/8" | 10 | 1/2" | 21.5 | 46.0 | 44.5 | |
| 4140N004B0 | 1/2" | 10 | 1/2" | 21.5 | 48.0 | 44.5 | ||
| 4140N004BG | O-Ring | 1/2" | 10 | 1/2" | 21.5 | 48.0 | 44.5 |
Smooth
- Yellow
- Chrome
- Nickel
- White
Max working temperature: 100°C
Max working pressure: 10 bar
Body in forged brass
Threads: ISO 228
Suitable for fittings for copper, PEX or multilayer piping
Allowed fluids: water (Glycole max percentage: 50%)
